Crankshaft Position Sensor: Service and Repair

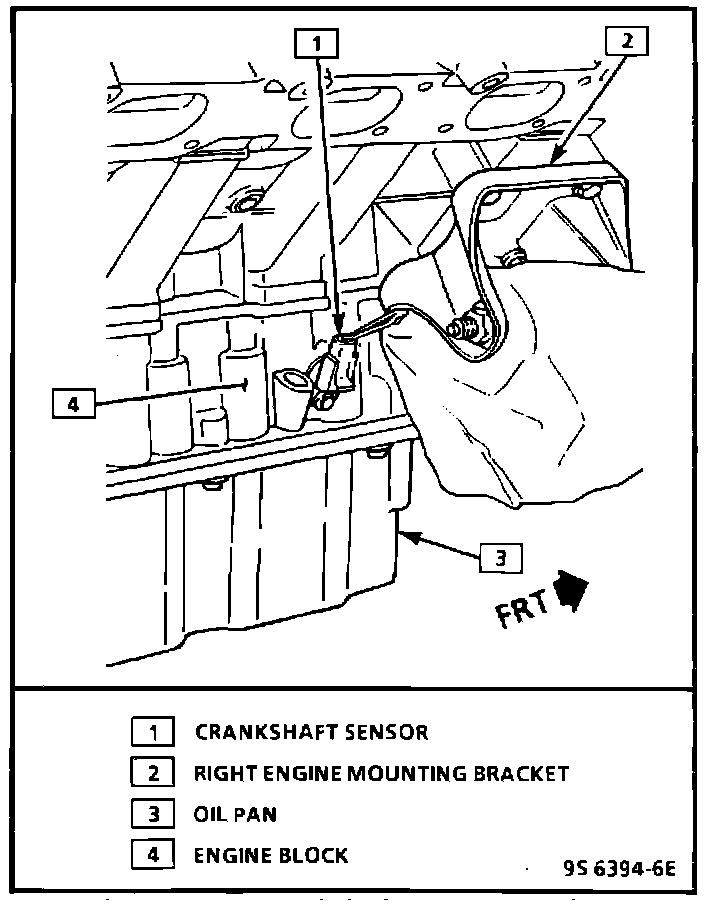

Crankshaft Sensor Location:

1. Disconnect negative battery cable.
2. Raise vehicle.
3. Disconnect crankshaft sensor electrical connector.
4. Remove sensor.

Reverse procedure to install. Use new O-ring. Use sensor shim if necessary to obtain the correct clearance with crankshaft reluctor wheel. Tighten bolt to 8.0 Nm (71 lb in).
