Air Temperature Sensor ( Ambient / Intake ): Description and Operation

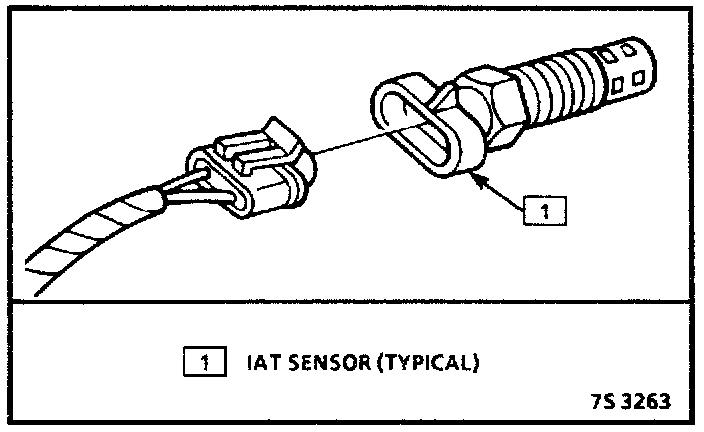

Intake Air Temperature (IAT) Sensor:

IAT Sensor Circuit Diagram:

IAT Sensor Location:

DESCRIPTION
The intake air temperature sensor, installed in the throttle body extension, is a thermistor with a negative temperature coefficient. Resistance through the sensor changes inversely with changes in temperature. Resistance is high when the sensor is cold, and decreases as temperature increases.

PURPOSE
Cold air is more dense than warm air and requires more fuel to maintain the same air/fuel ratio for a given volume of air. Also, gasoline does not atomize well in cold air, requiring still more fuel to burn well. The ECM uses intake air temperature as a factor to calculate the base injector pulse width for the required air/fuel ratio at different temperatures.

OPERATION
The ECM applies a 5 volt reference voltage to the sensor through a resistor in the ECM, and then monitors the voltage in the circuit. When the intake air is cold, resistance through the sensor will be high and the voltage in the circuit will be near the reference voltage of 5V. When the temperature increases, resistance drops, more current flows through the circuit and the voltage in the circuit will drop. Each voltage value corresponds to a specific resistance through the sensor and a specific air temperature. The ECM measures this voltage and calculates the temperature of the incoming air.
