Drive Belt: Service and Repair

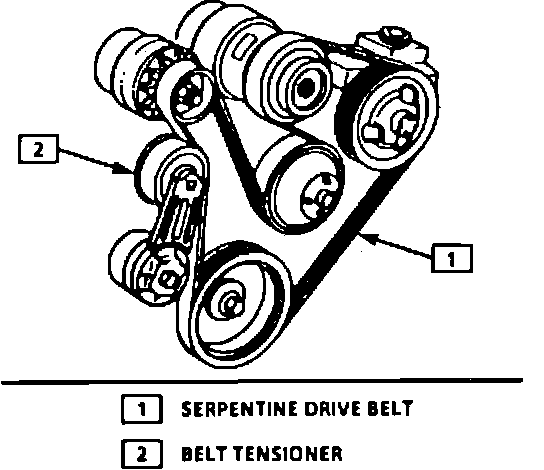

Fig. 30 Serpentine Drive Belt Routing:

1. Disconnect battery ground cable.
2. Remove air intake duct from throttle body extension.
3. Using a 1/2 inch ratchet, retract serpentine drive belt tensioner.
4. Lift belt rearward, off water pump pulley, then remove belt from vehicle.
5. Reverse procedure to install. Refer to Fig. 30. for serpentine belt routing.
