Home
>>
Chevrolet
>>
1993
>>
Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

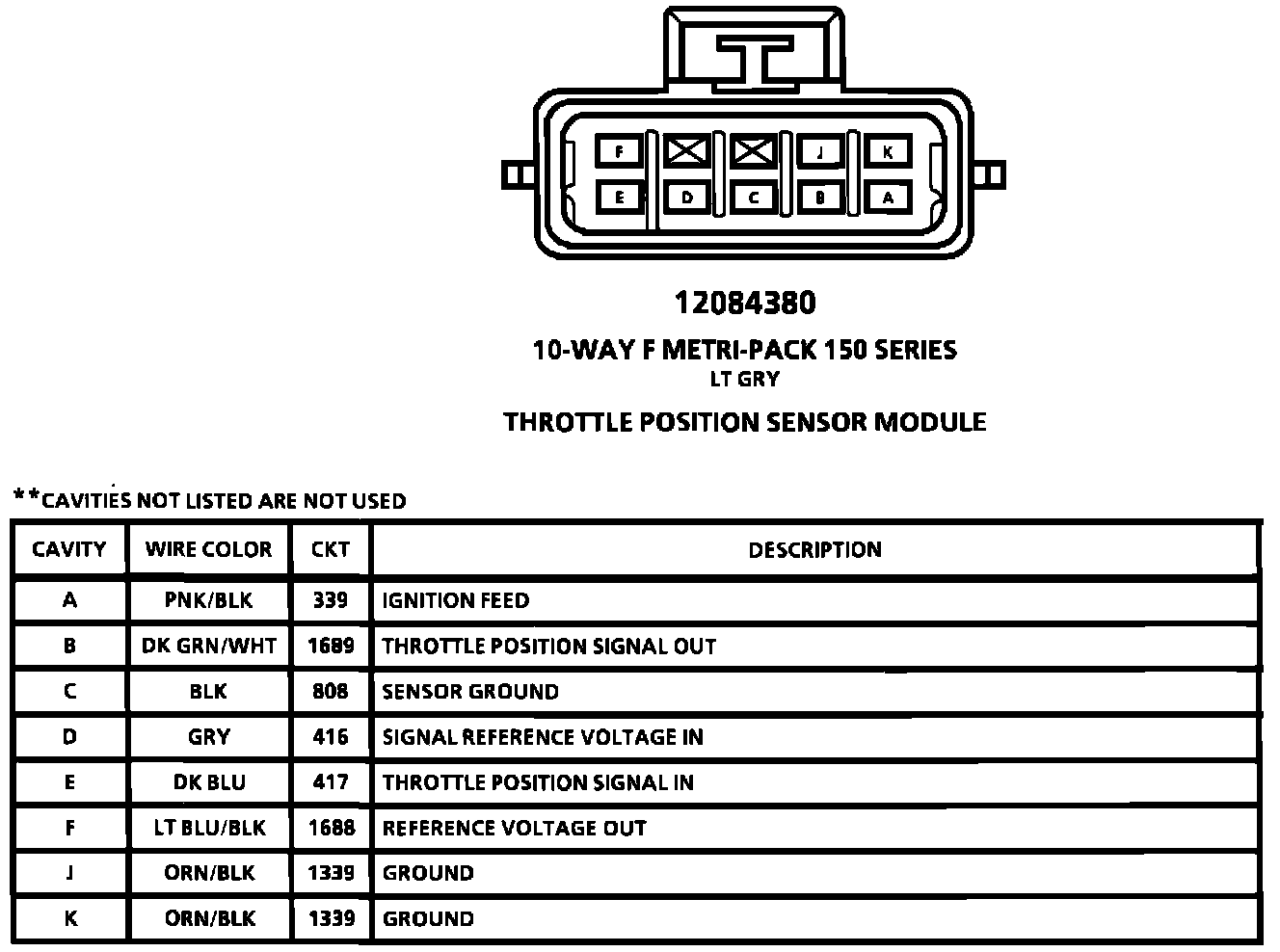

Throttle Position Sensor Module Connector:
