Chart D "Service ASR" Indicator Inoperative

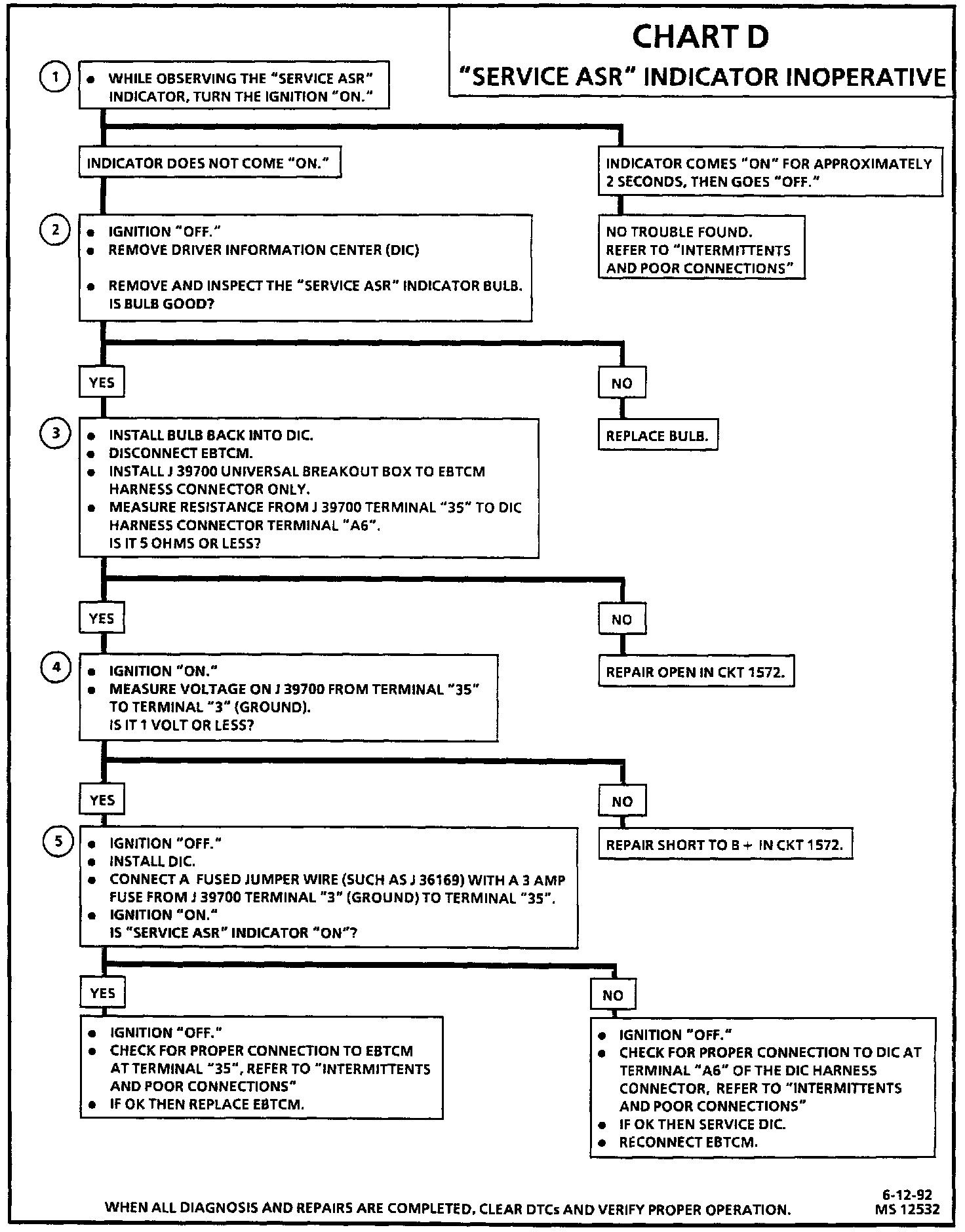

Diagnostic Chart:

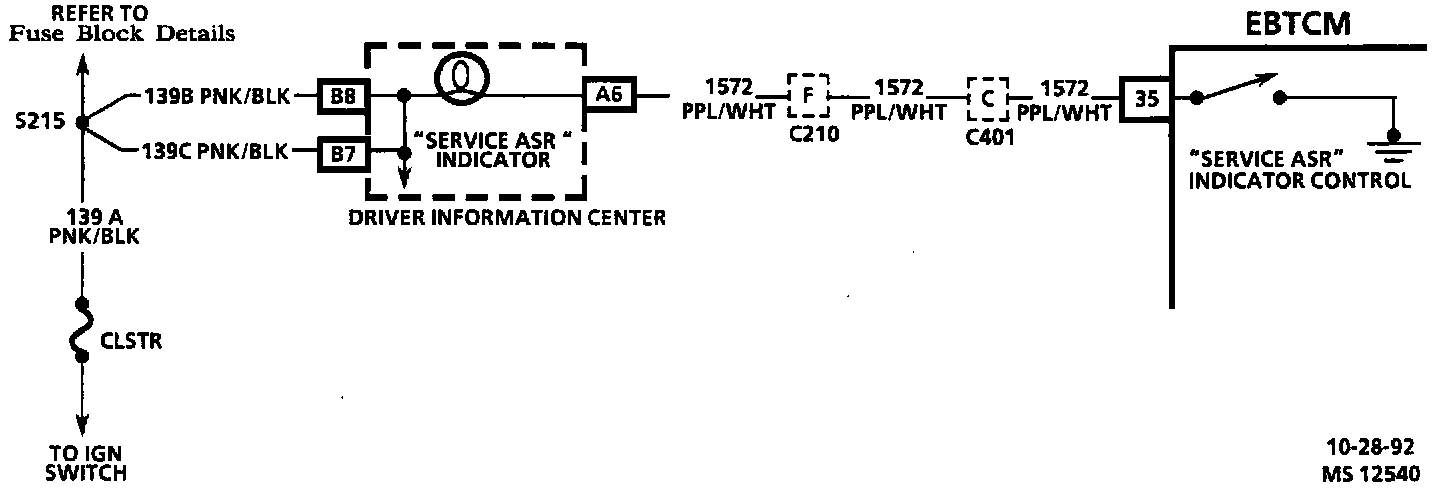

Wiring Diagram:

TEST DESCRIPTION:
Number(s) below refer to circled number(s) on the diagnostic chart.
1. This test confirms that a malfunction condition exists.
2. This test checks the integrity of the indicator bulb.
3. This test checks for an indicator low side circuit open.
4. This test checks for an indicator low side circuit short to B+.
5. This test determines whether the malfunction is due to an EBTCM circuit malfunction or an open in the Driver Information Center (DIC) printed circuit.
