Home >> Chevrolet >> 1993 >> Cavalier/Z24 L4-134 2.2L >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Charts

Diagnostic Charts

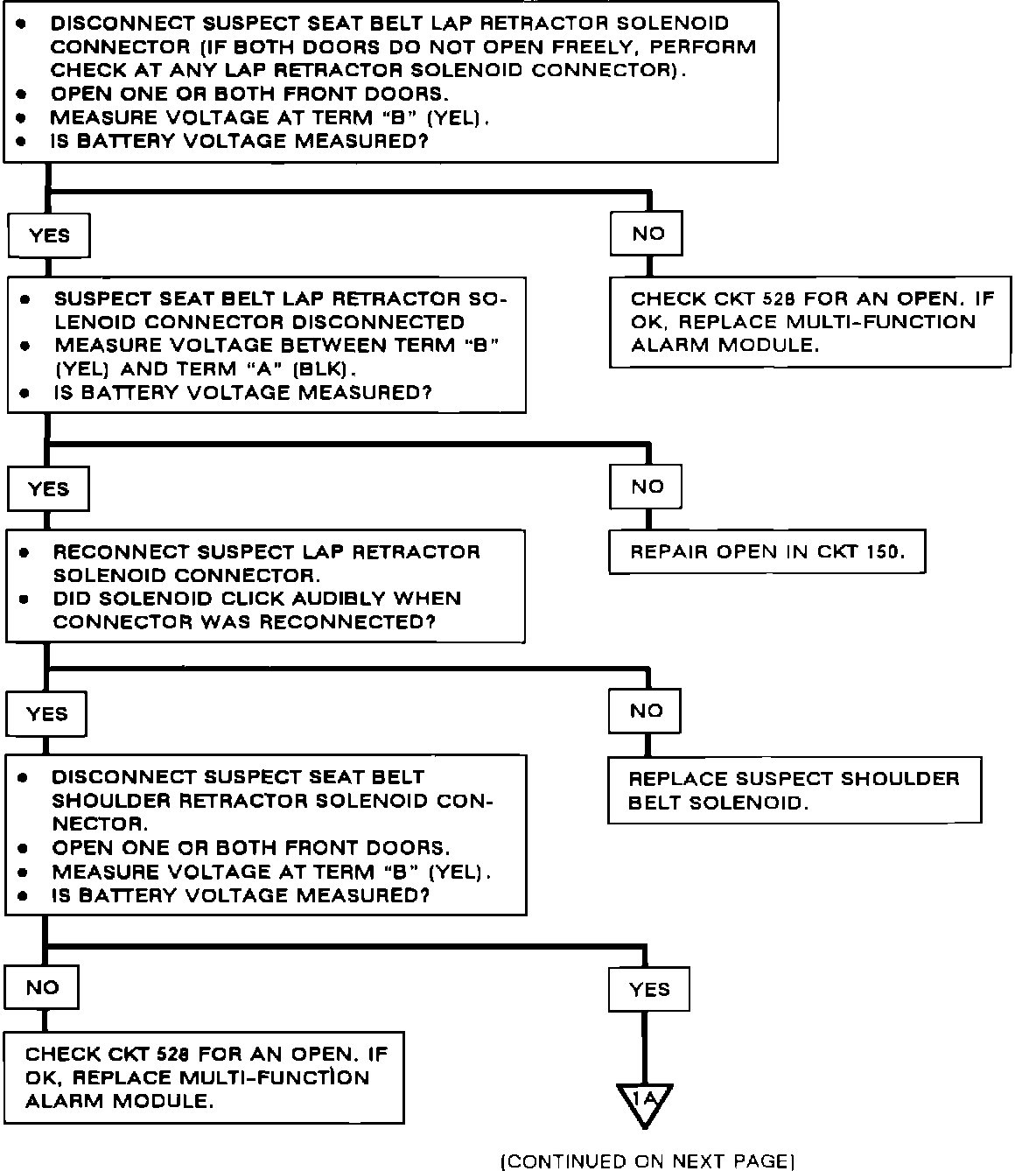

Chart #1 - Fasten Belts Indicator Operates Normally But One Or Both Doors Do Not Open Freely:



Chart #1 - Fasten Belts Indicator Operates Normally But One Or Both Doors Do Not Open Freely:
