Home
>>
Chevrolet
>>
1993
>>
Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

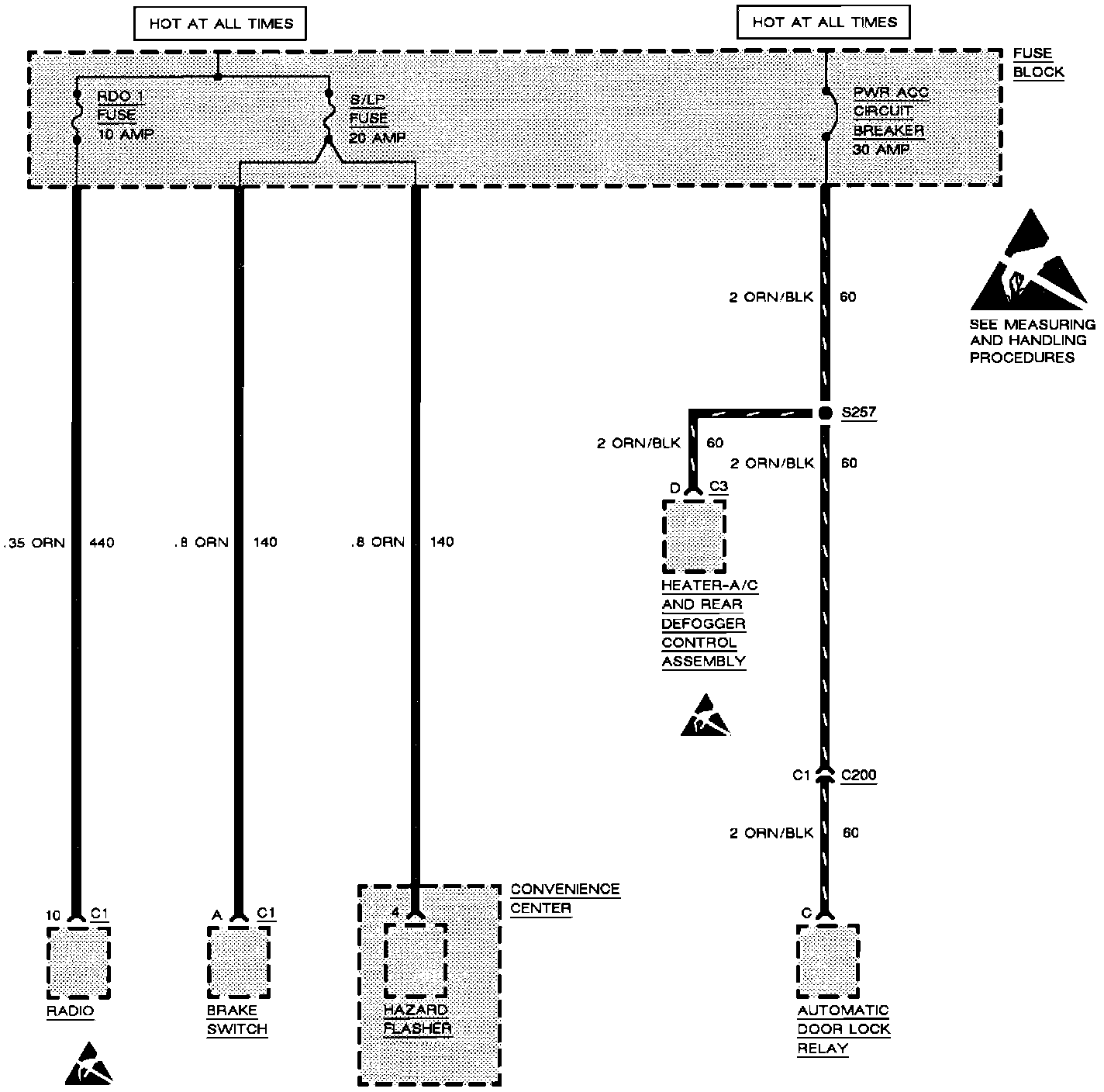

RDO 1, S/LP Fuse and PWR ACC Circuit Breaker
RDO 1, S/LP Fuse and PWR ACC Circuit Breaker
Wiring Diagram:
