Home
>>
Chevrolet
>>
1993
>>
Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G302 and G201
>>
Coupe and Convertible
Coupe and Convertible

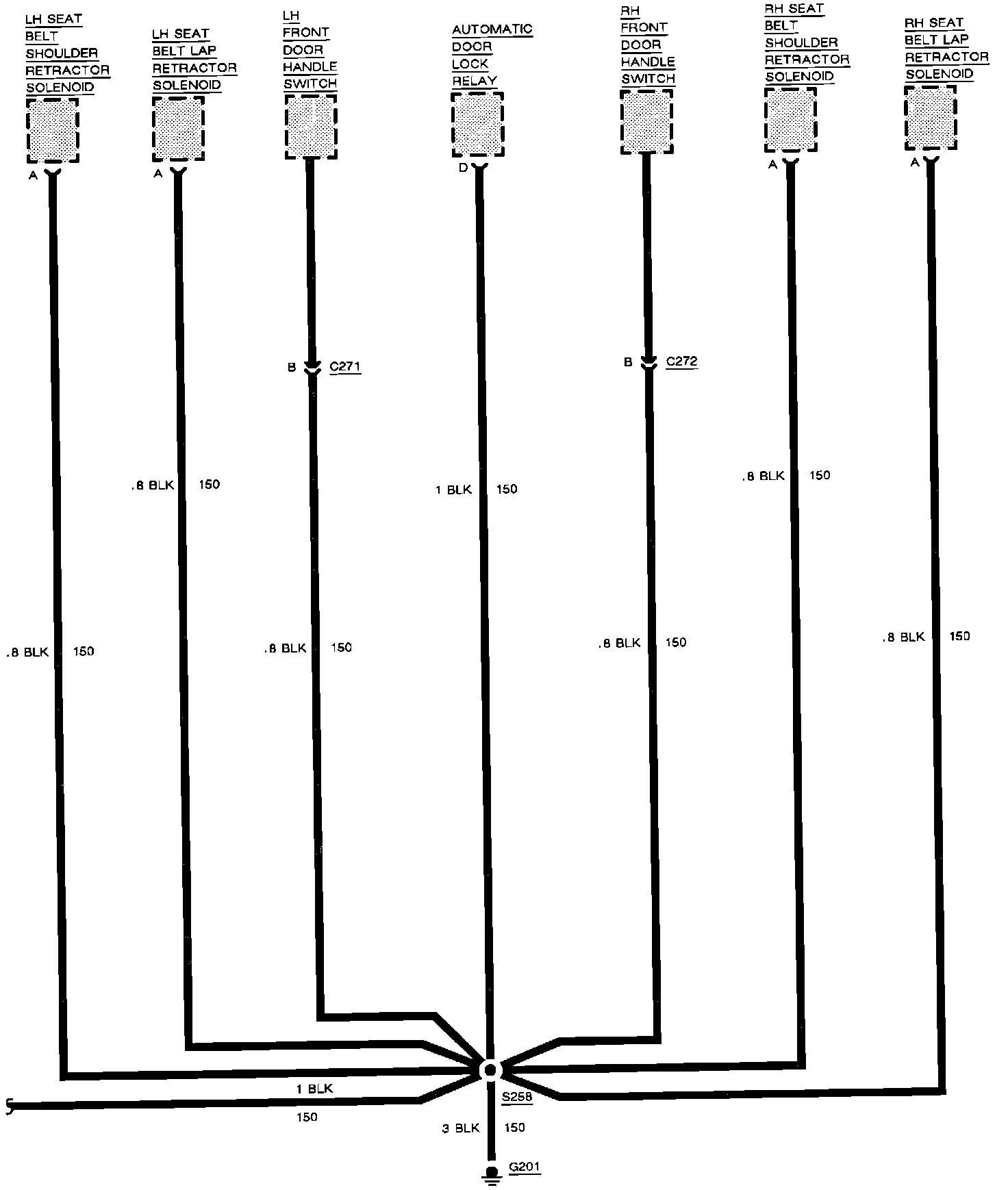

Wiring Diagram:
Wiring Diagram:
