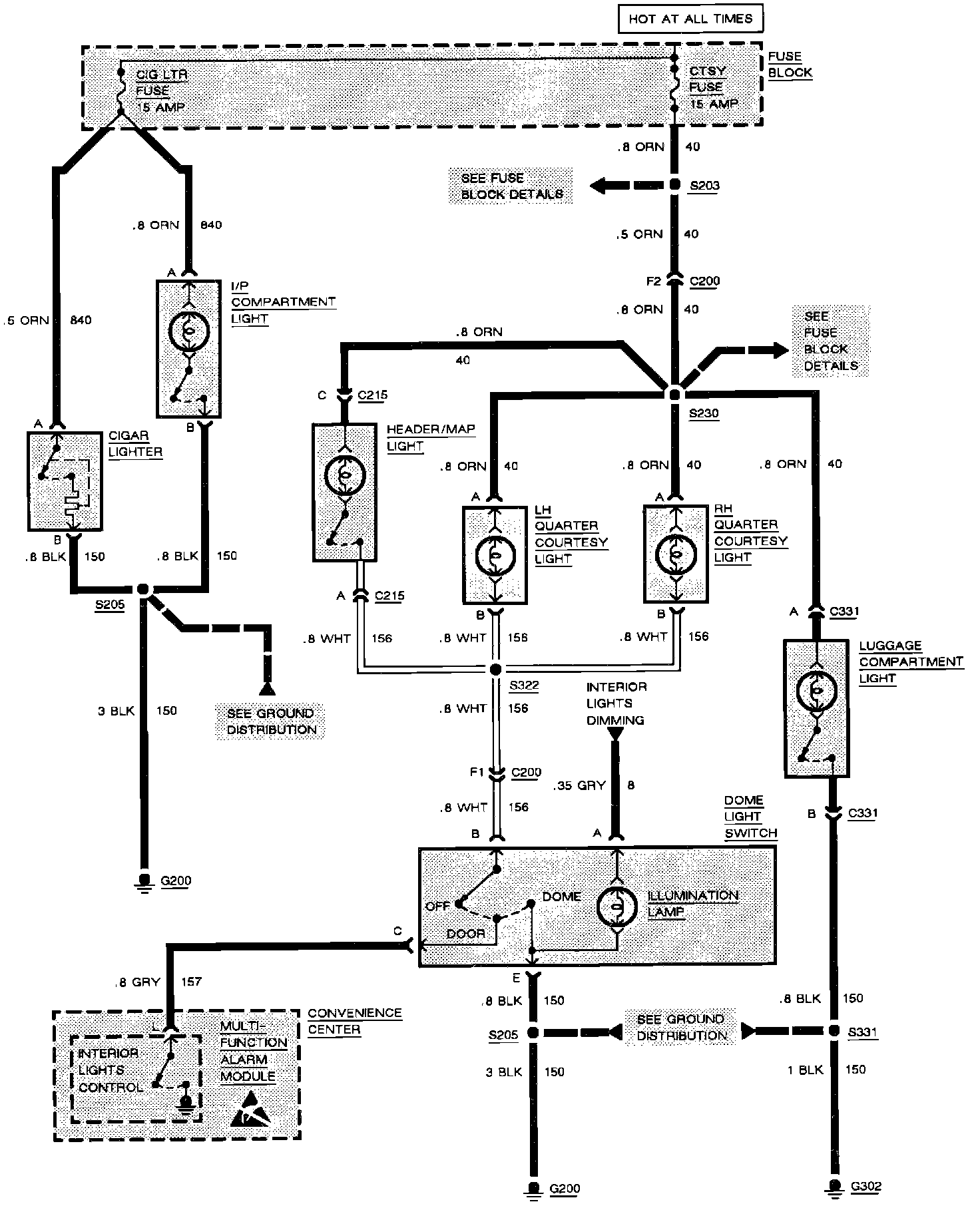

Cigar LTR/IP Cmpt/Trunk/Header/Quarter Courtesy (Convertible)
Cigar LTR/IP Cmpt/Trunk/Header/Quarter Courtesy (Convertible)
Wiring Diagram:
