Chevrolet
>>
1993
>>
Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Control & Fuel Injectors
Fuel Control & Fuel Injectors

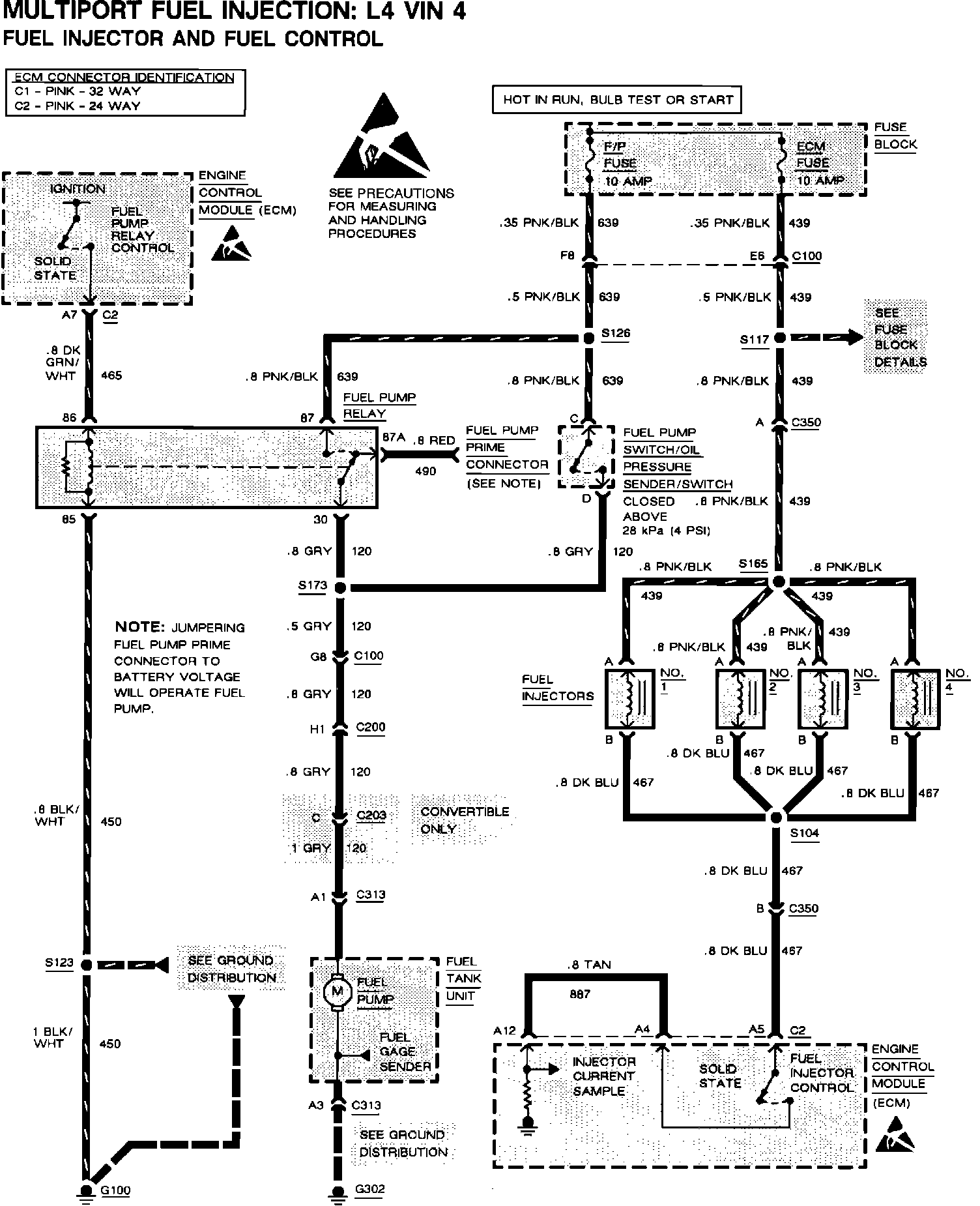

Fuel Injector And Fuel Control:
