Home
>>
Chevrolet
>>
1993
>>
Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
Power Locks

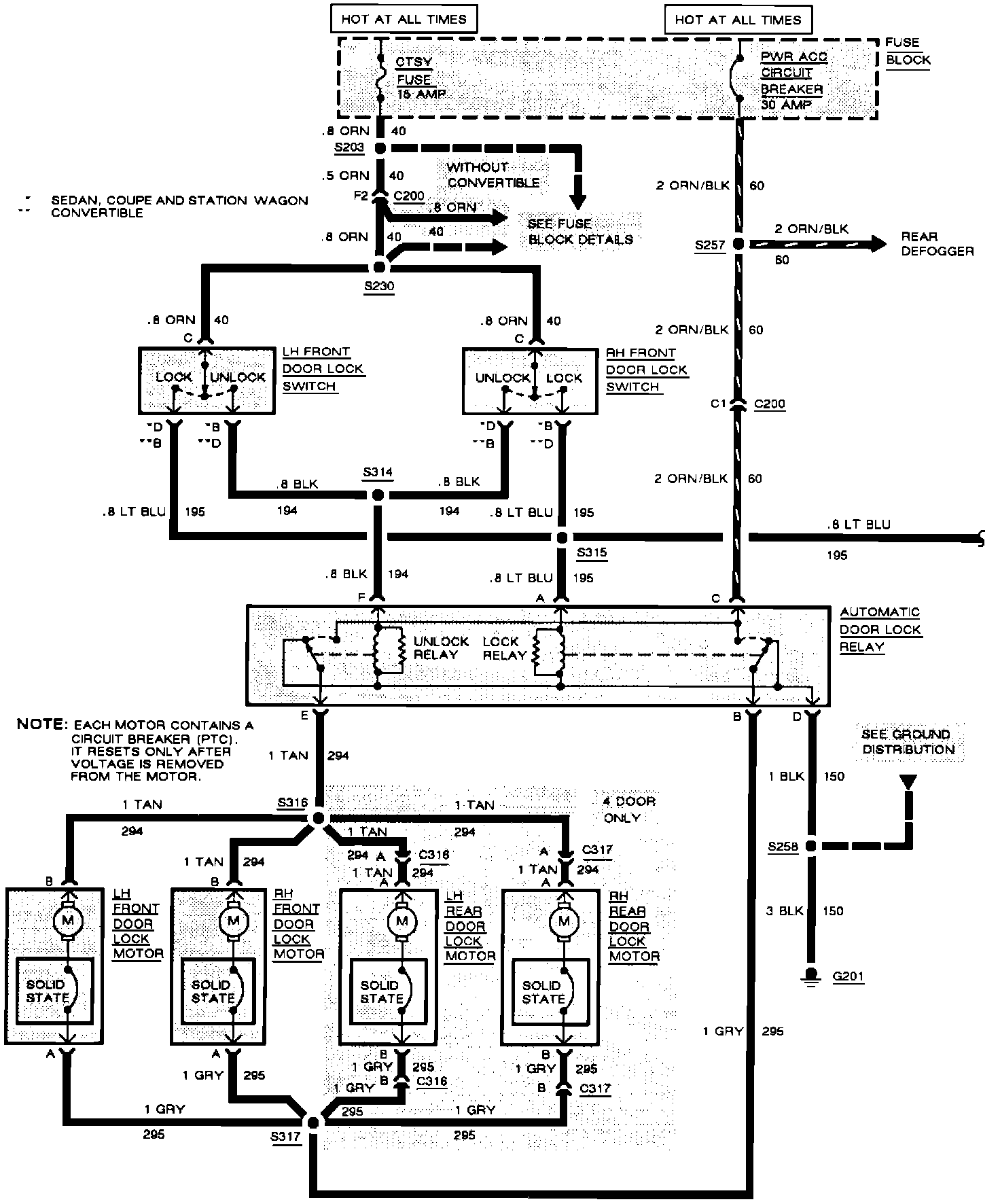

Wiring Diagram:

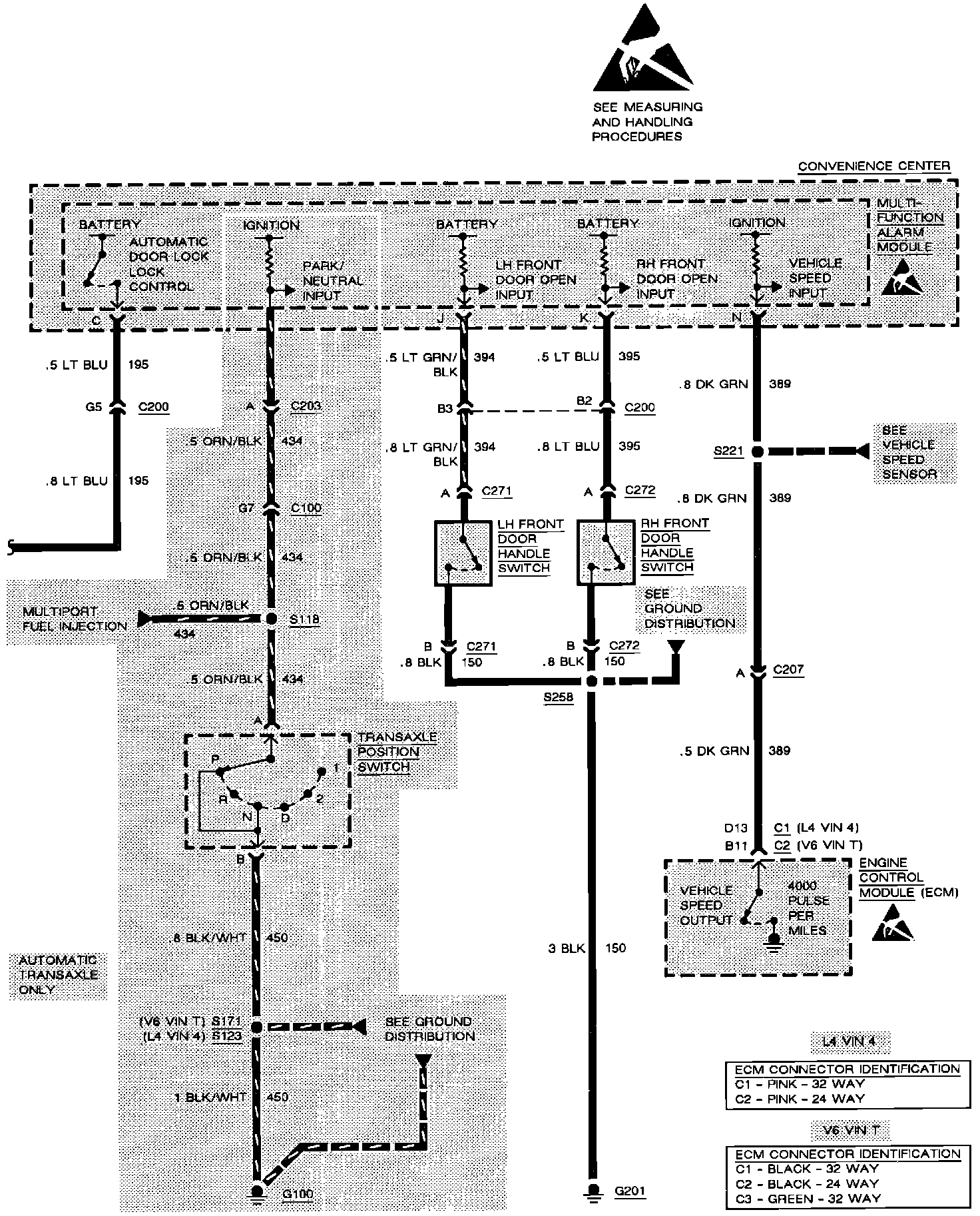

Wiring Diagram:
