Home
>>
Chevrolet
>>
1993
>>
Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Hydraulic Assembly, Traction Control
Hydraulic Assembly, Traction Control

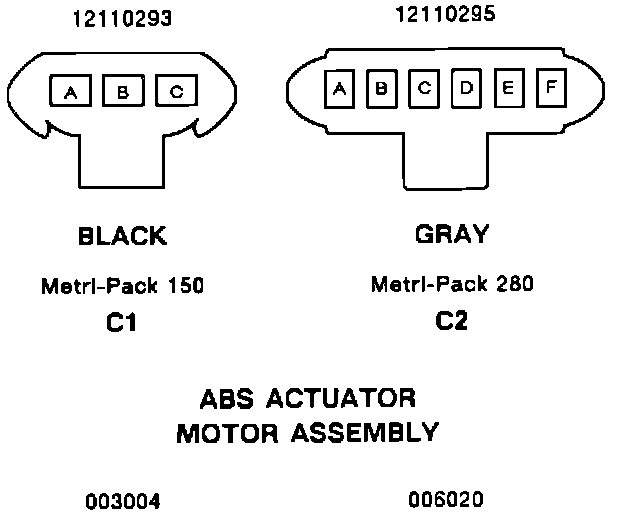

ABS Actuator Motor Assembly Connector:
