Home
>>
Chevrolet
>>
1993
>>
Caprice RWD V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Compressor HVAC
Compressor HVAC

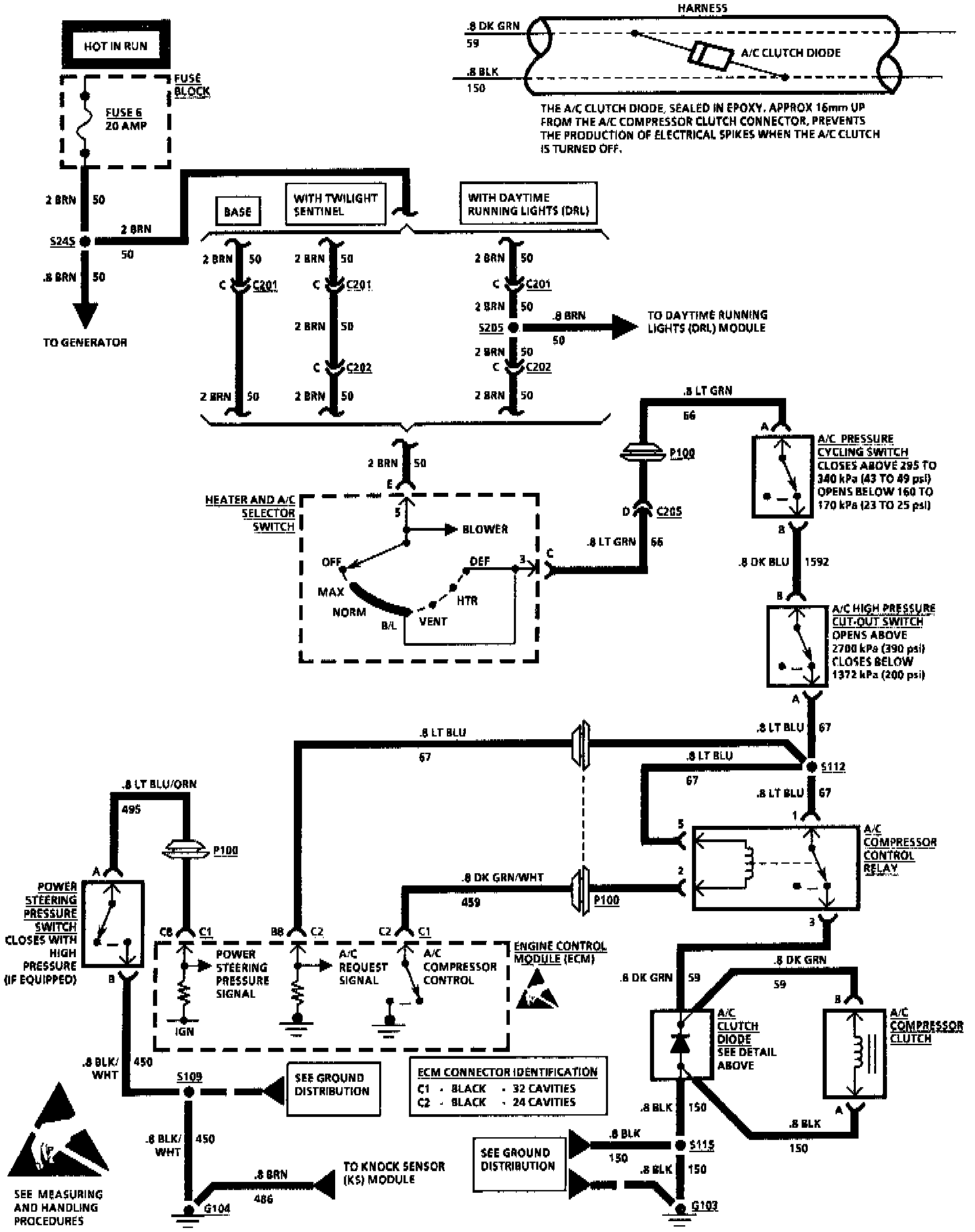

HVAC Compressor Control: Manual A/C (C60) VIN E And VIN 7:
