Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1993
>>
Caprice RWD V6-262 4.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Diagrams
>>
Diagram Information and Instructions
>>

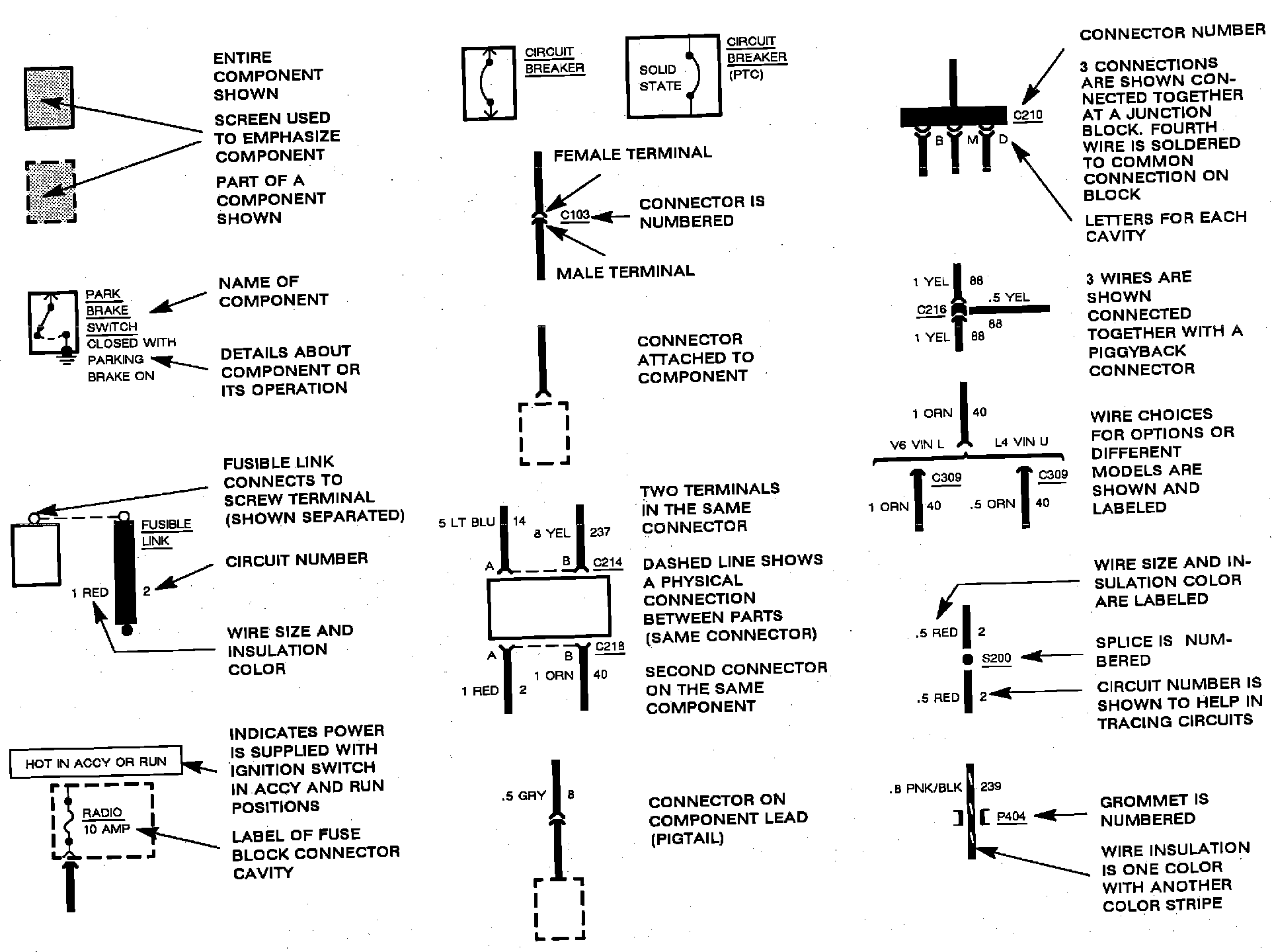

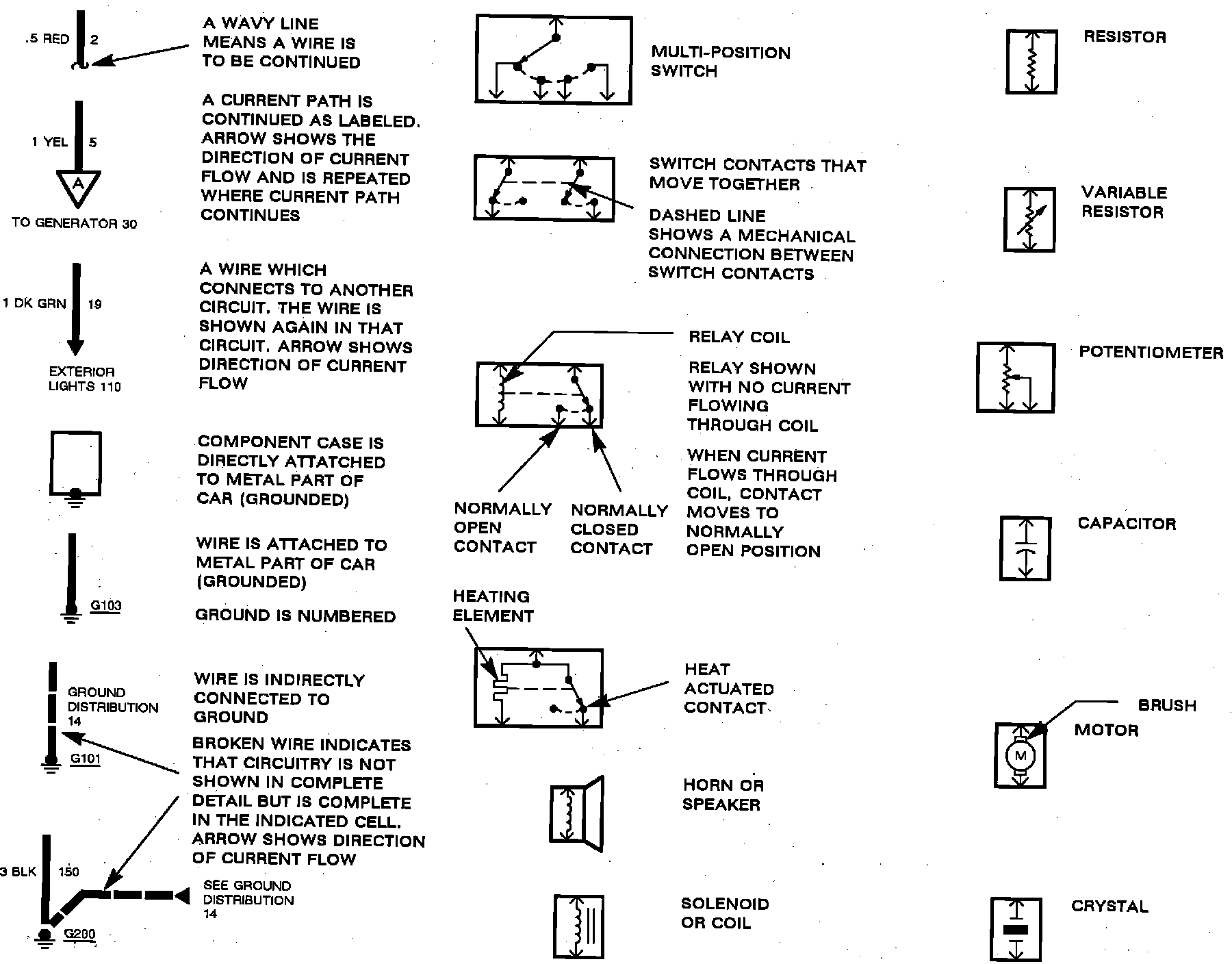

Schematic Symbols
Schematic Symbols
Symbol Identification:
Symbol Identification:
Symbol Identification:
