Chevrolet
>>
1993
>>
Caprice RWD V6-262 4.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Fuses 14, 15 and 16
Fuses 14, 15 and 16

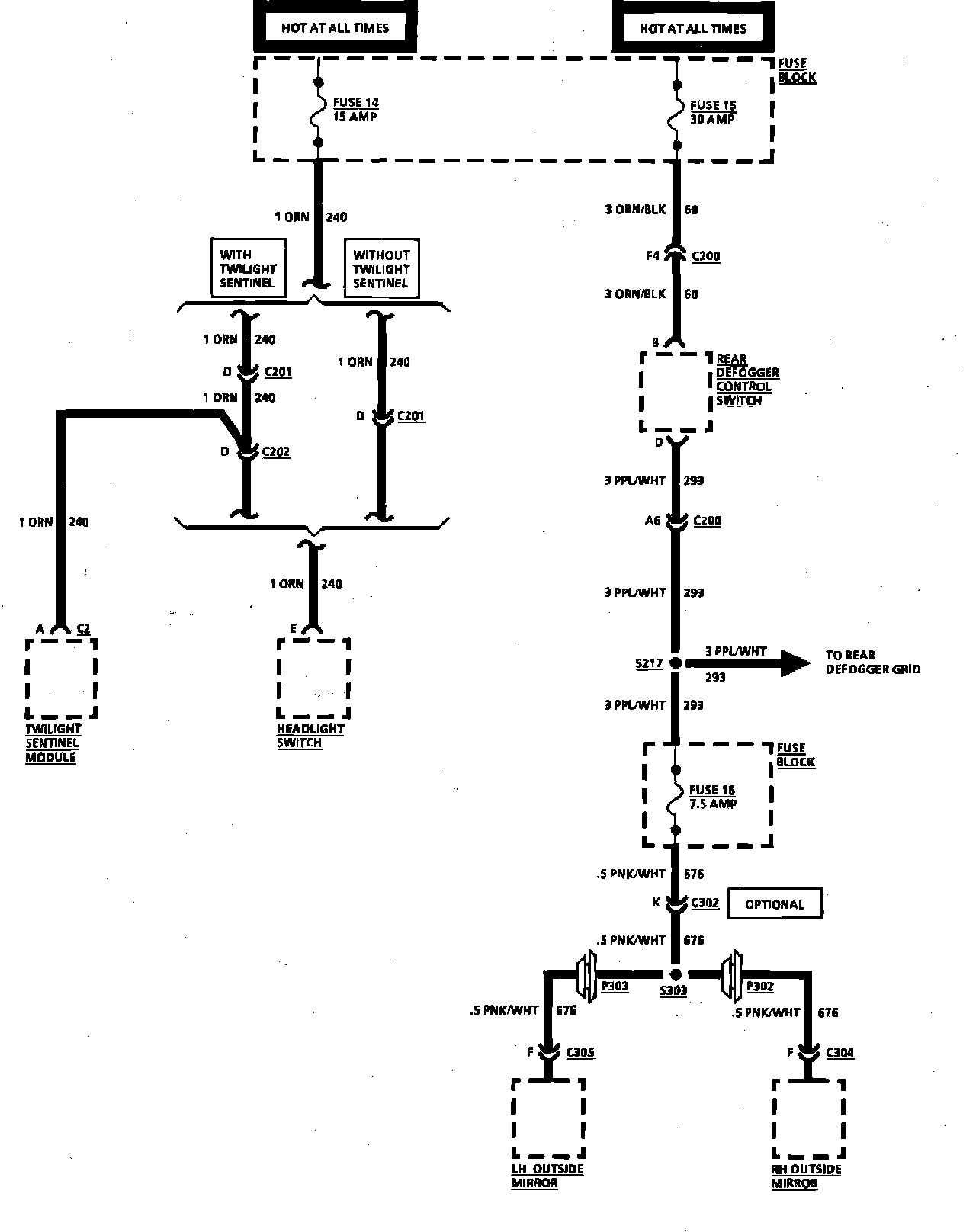

Fuse Block Details (Fuses 14, 15 & 16). Sedan:
