Home >> Chevrolet >> 1993 >> Caprice RWD V6-262 4.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuses 11, 12 and 13

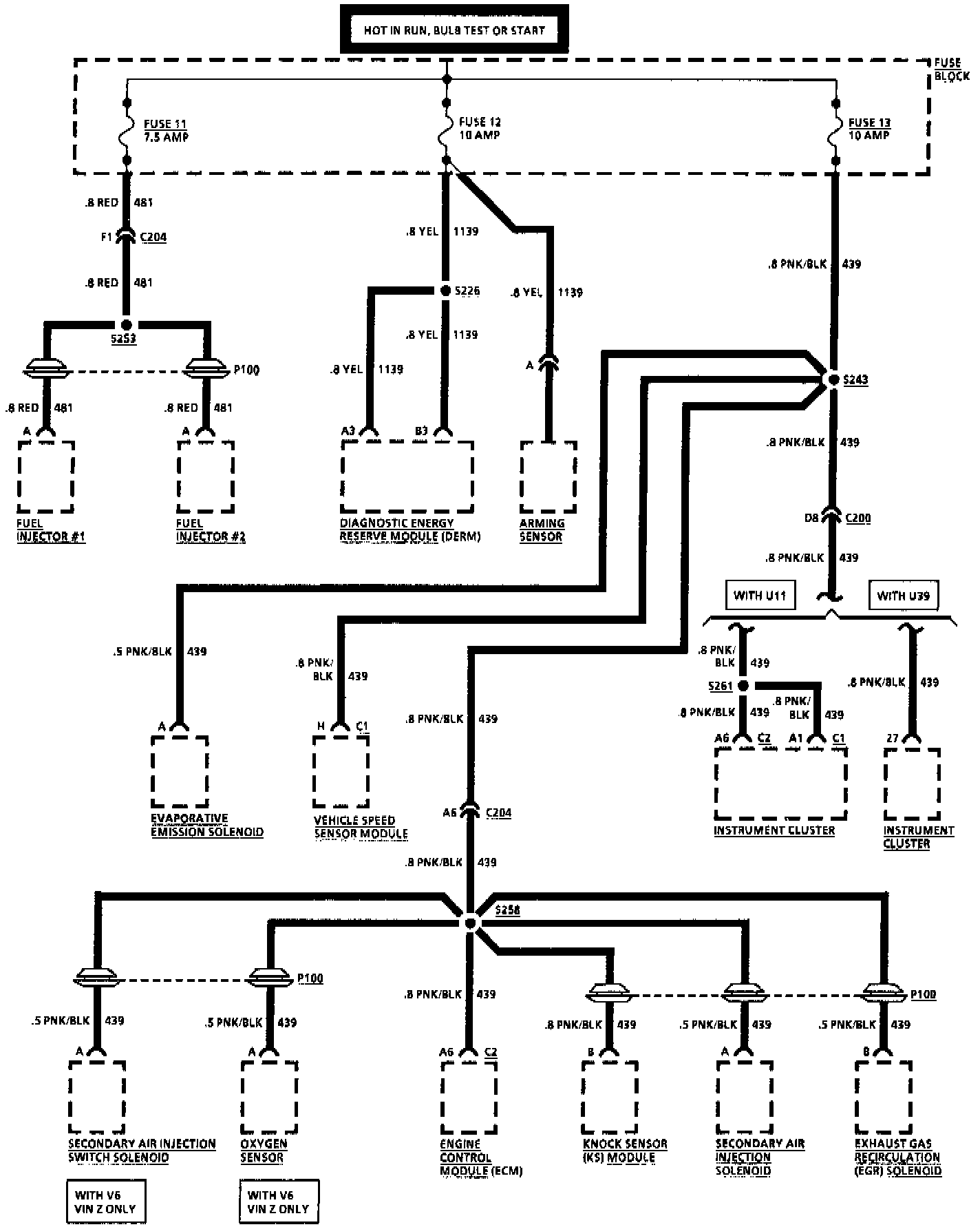

Fuses 11, 12 and 13

Fuse Block Details (Sedan): Fuses 11,12 And 13:
