Chevrolet
>>
1993
>>
Caprice RWD V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Ground Distribution
>>
G104
G104

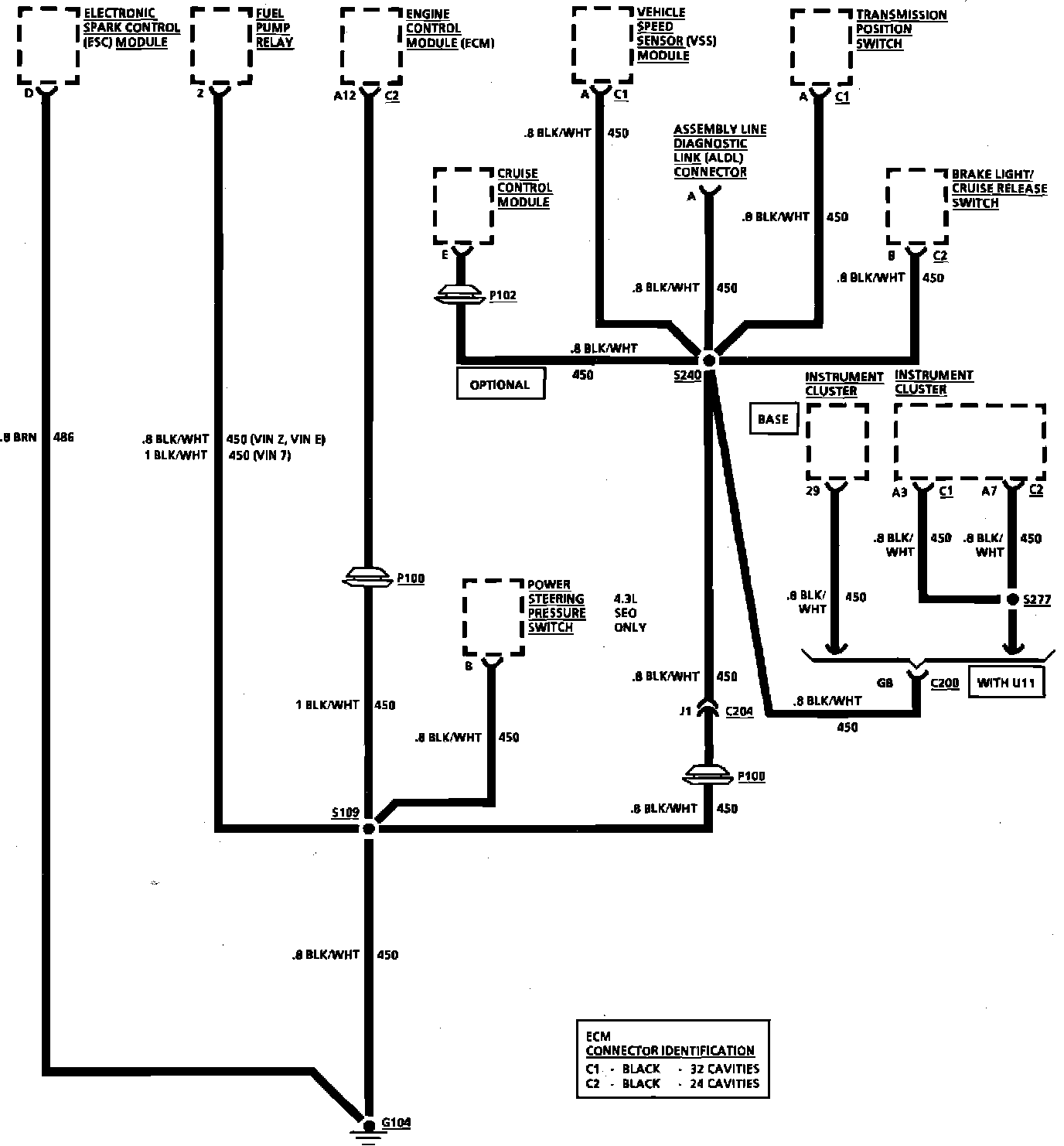

Ground Distribution (G104: ECM & Vehicle Ground). Sedan:
