Home
>>
Chevrolet
>>
1993
>>
Caprice RWD V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Courtesy Lamp
>>
System Diagram
>>
Rear
Rear

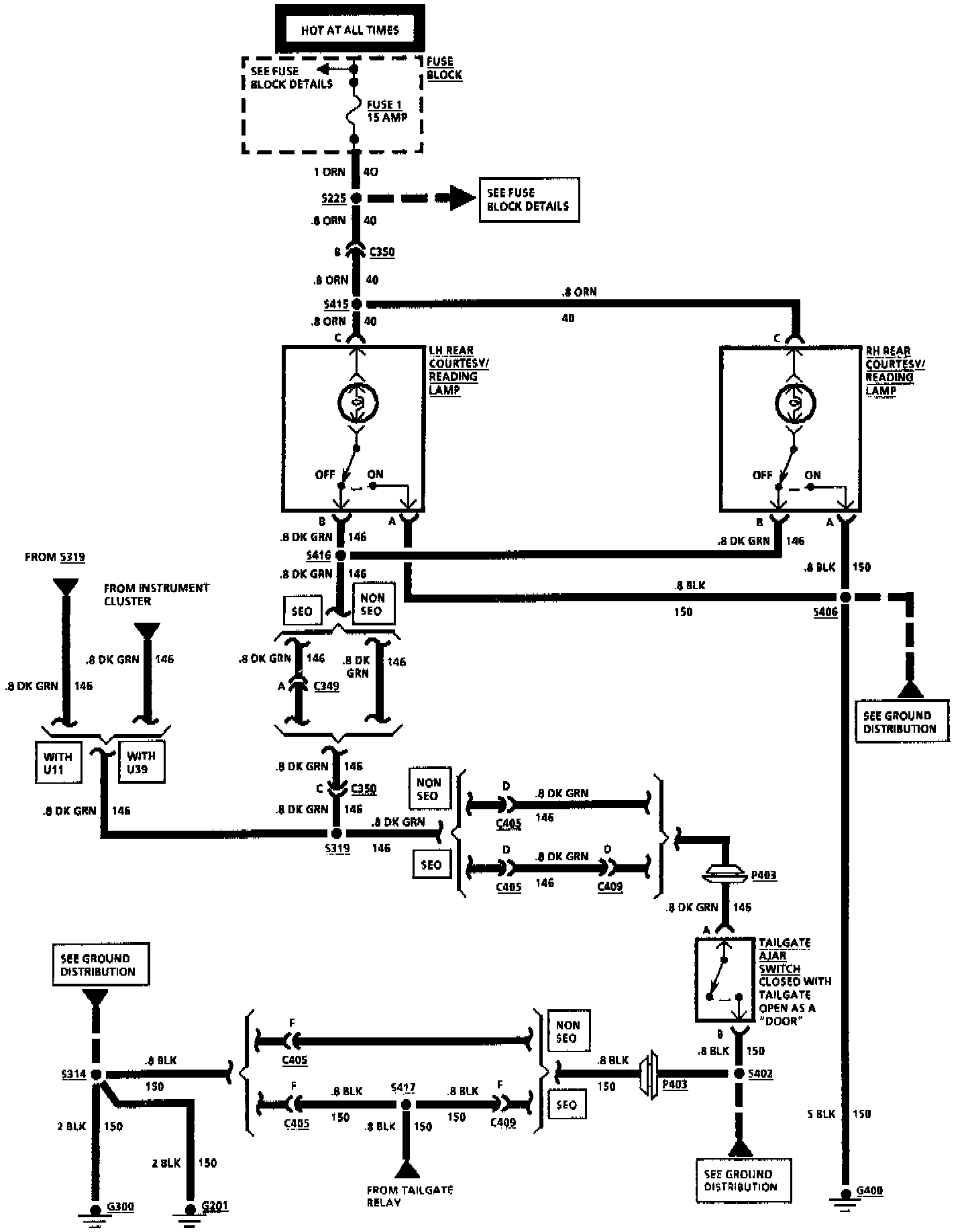

Interior Lights: Rear Courtesy/Reading Lights:
