Auxiliary Fuse Block

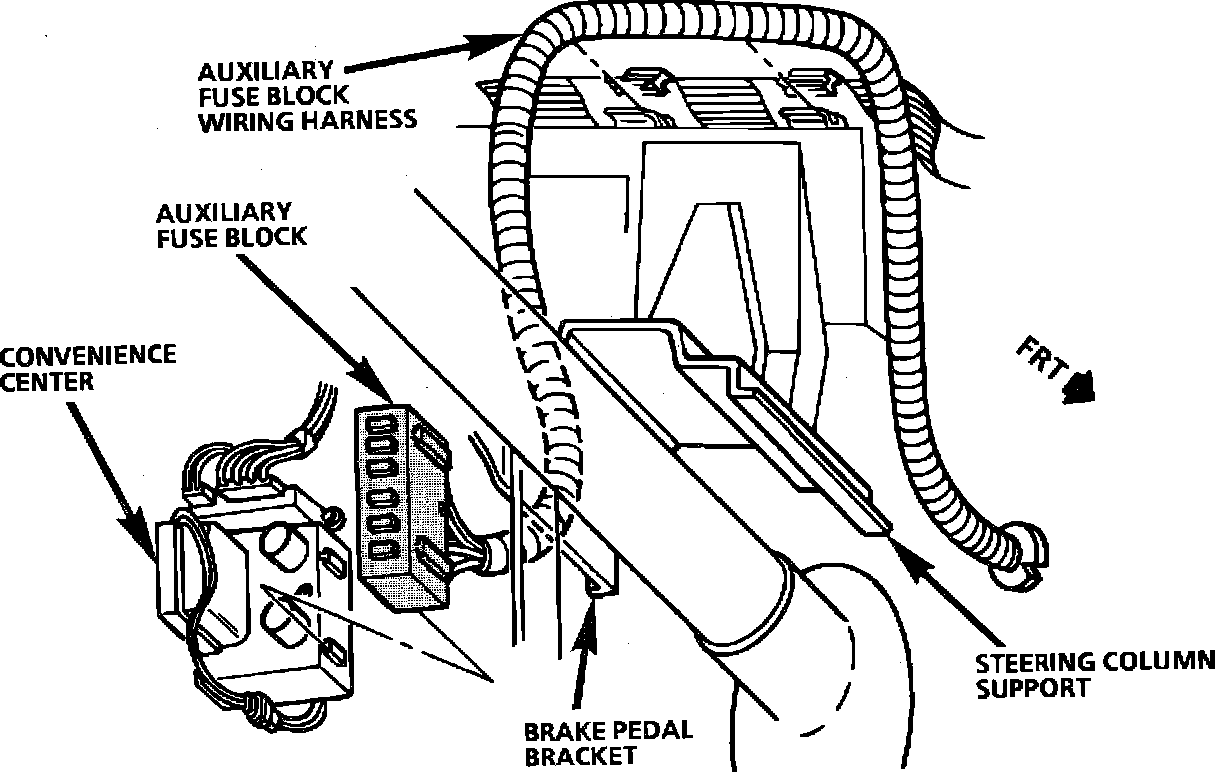

Component Location View. LH Lower Instrument Panel:




Mounted to RH side of Convenience Center
