ABS - Revised Diagnostic Charts

Number: 93-231-5
Section: 5
Date: JUNE 1993
Corporate Bulletin No.: 315008
ASE No.: A5

Subject:
ANTILOCK BRAKE SYSTEM (ABS) DIAGNOSIS, REVISED DTC(S) CHARTS A033, A035 AND FIG. 1, FRONT BASE BRAKING MODE

Model and Year:
1993 CAMARO

SERVICE UPDATE

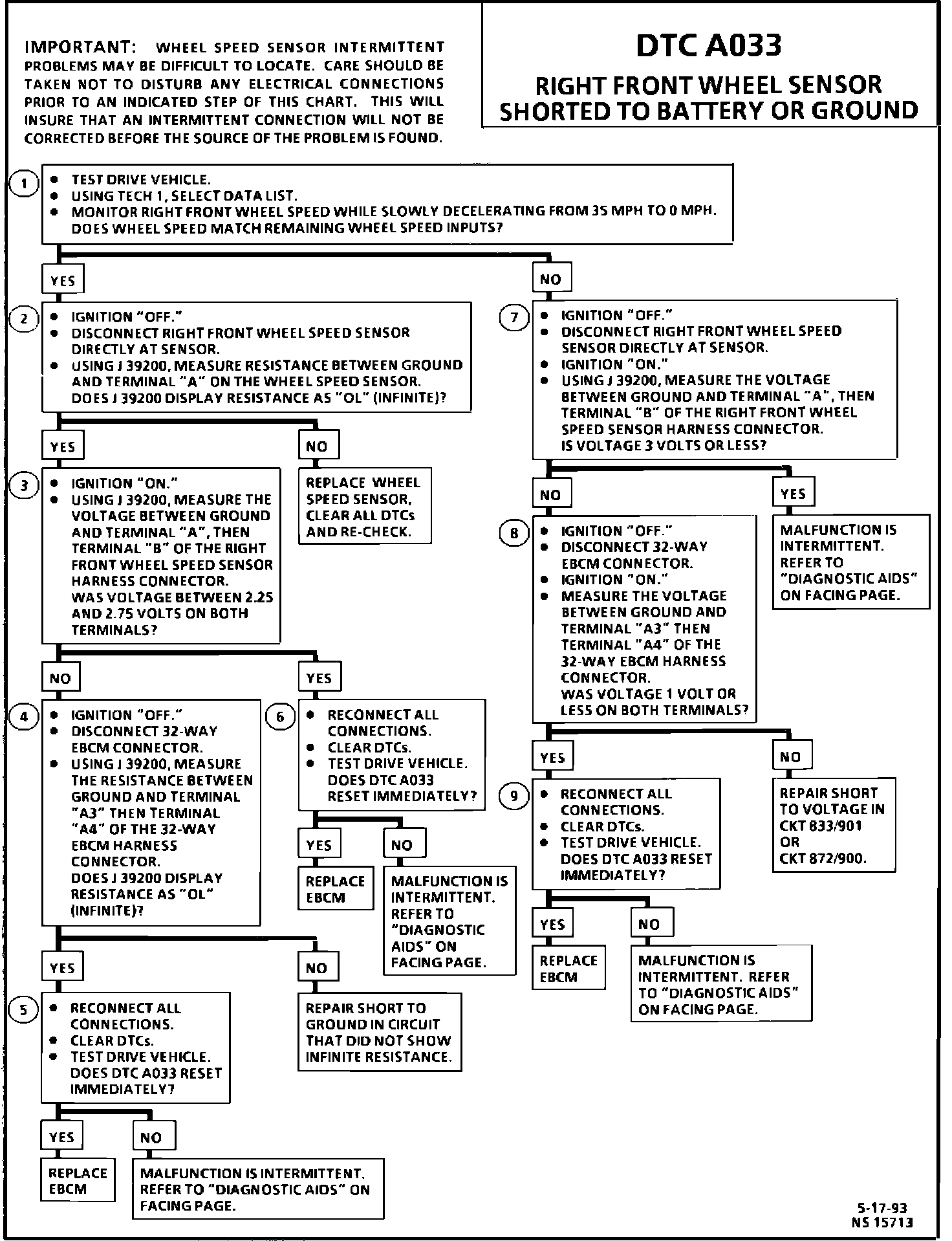

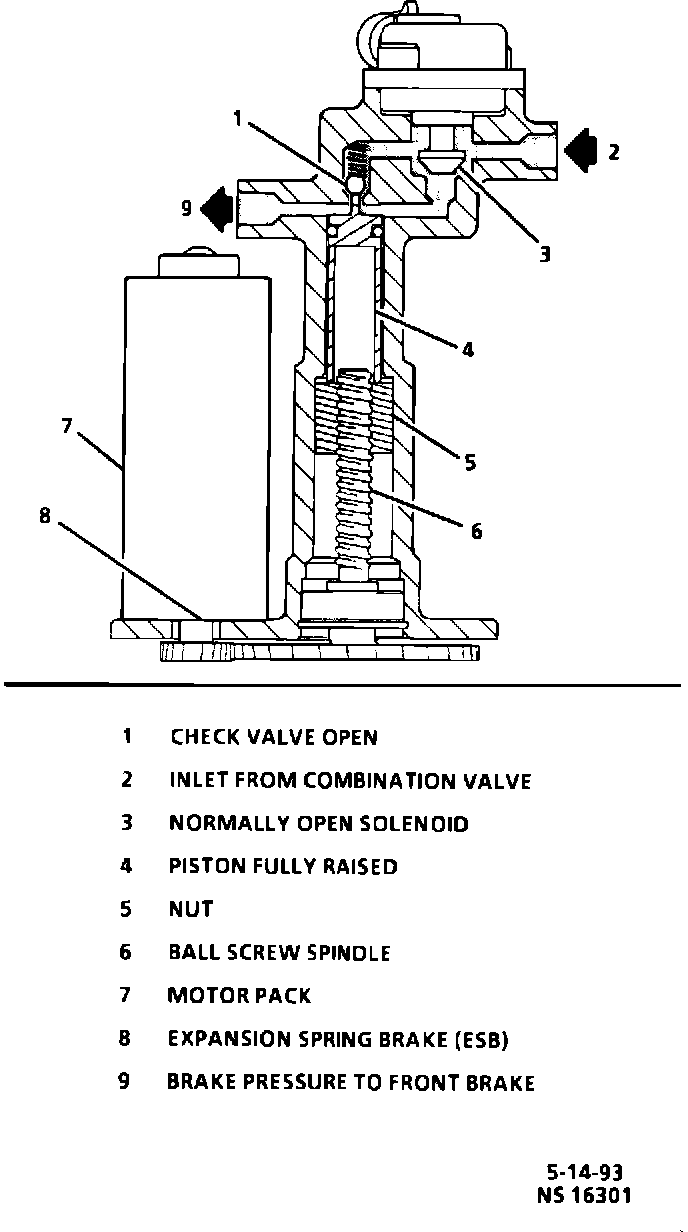

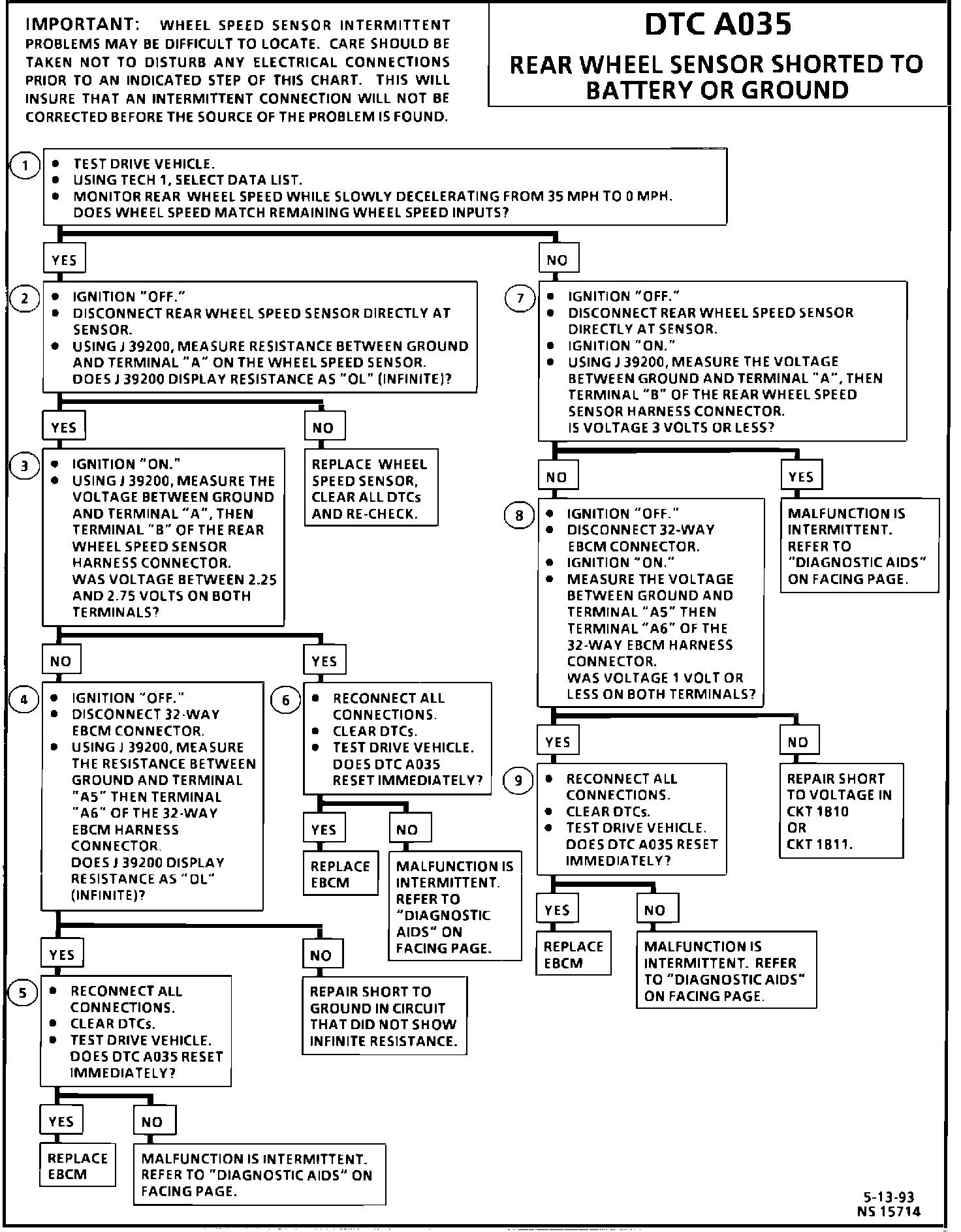

This bulletin updates the 1993 Camaro Antilock Brake System Supplement (ST 368-93 Supp or S-9310-F Supp). Please use the charts for Diagnostic Trouble Codes A033 and A035 when performing ABS diagnostics. Also included is a revision of Figure 1 - Front Base Braking Mode shown on page 5E1-3.
