Fuel Tank Pressure Release Valve: Service and Repair

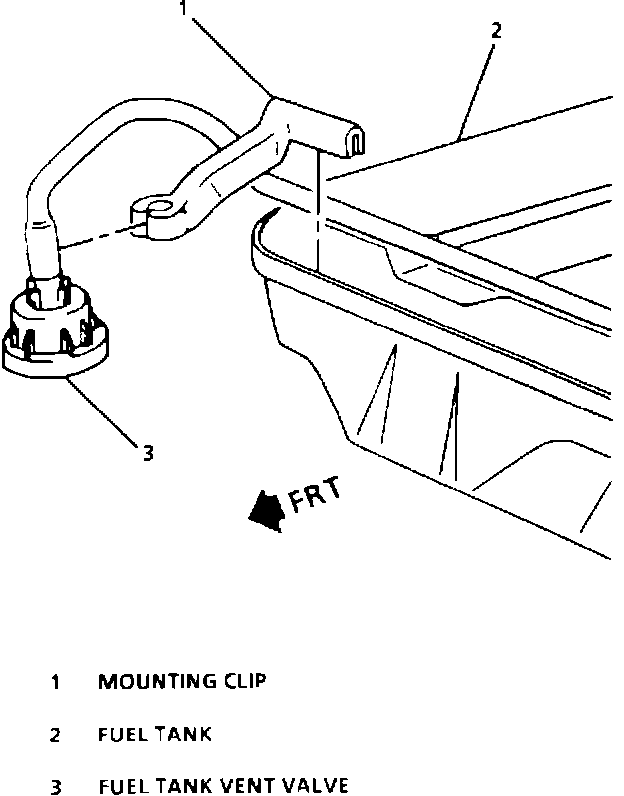

Fuel Tank Vent Valve:

Remove or Disconnect:
1. Disconnect negative battery cable

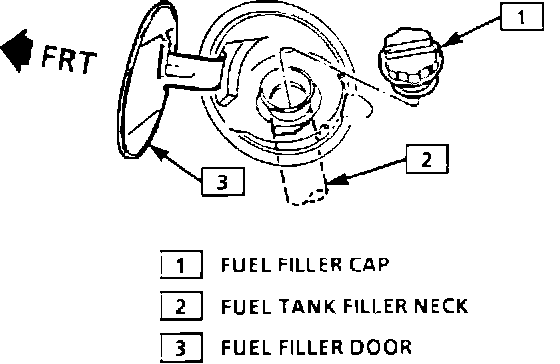

Fuel Filler Cap:

2. Remove filler cap
3. Raise vehicle
4. Remove fuel tank vent valve hose
5. Squeeze tabs and remove valve from bracket


Install or Connect:
1. Reverse removal procedures to install
