Home
>>
Chevrolet
>>
1993
>>
Camaro V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition Controls
Ignition Controls

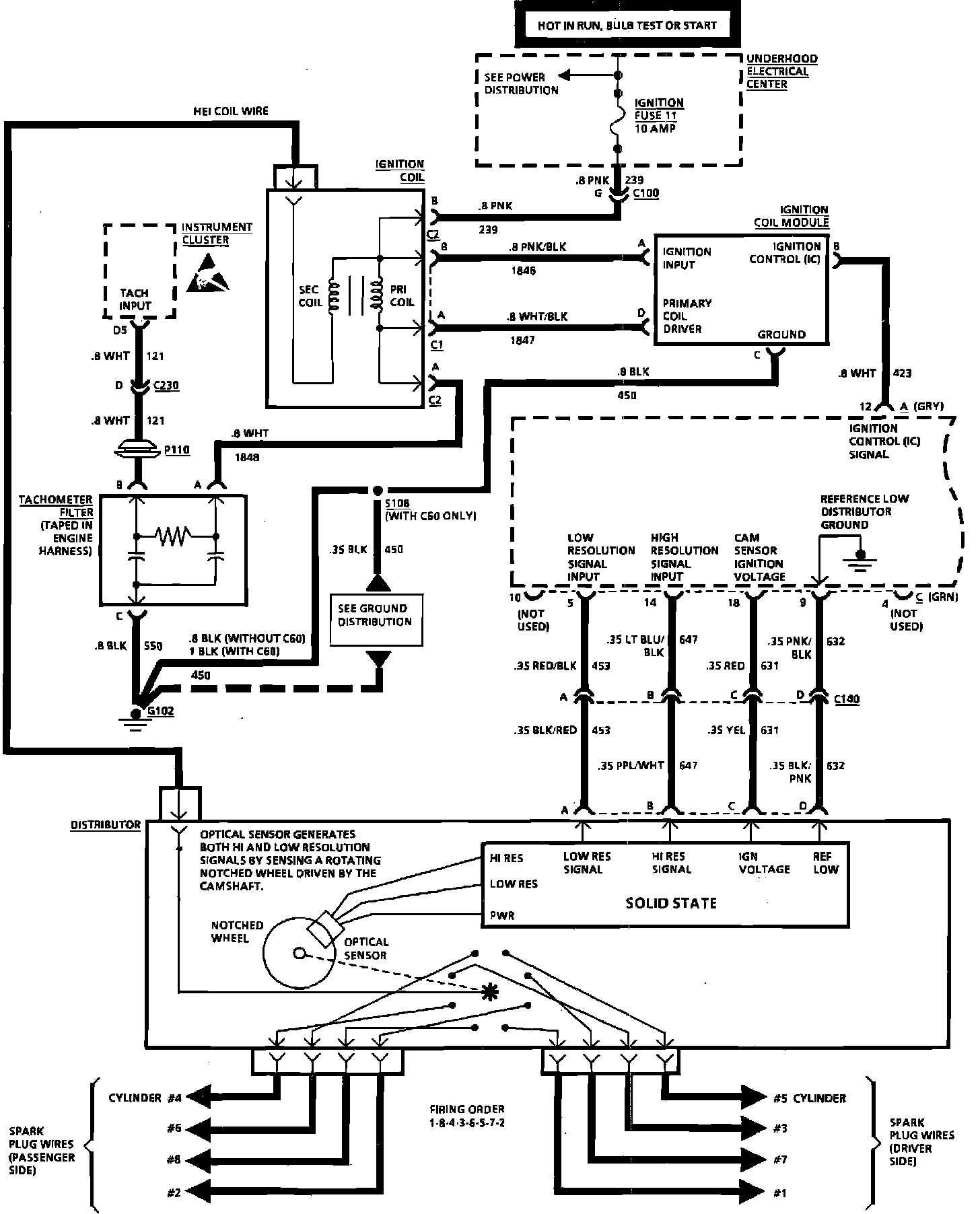

Ignition System Wiring Diagram:
