Fuel Pump Send, Power Seats, Rear Defog, CHMSL

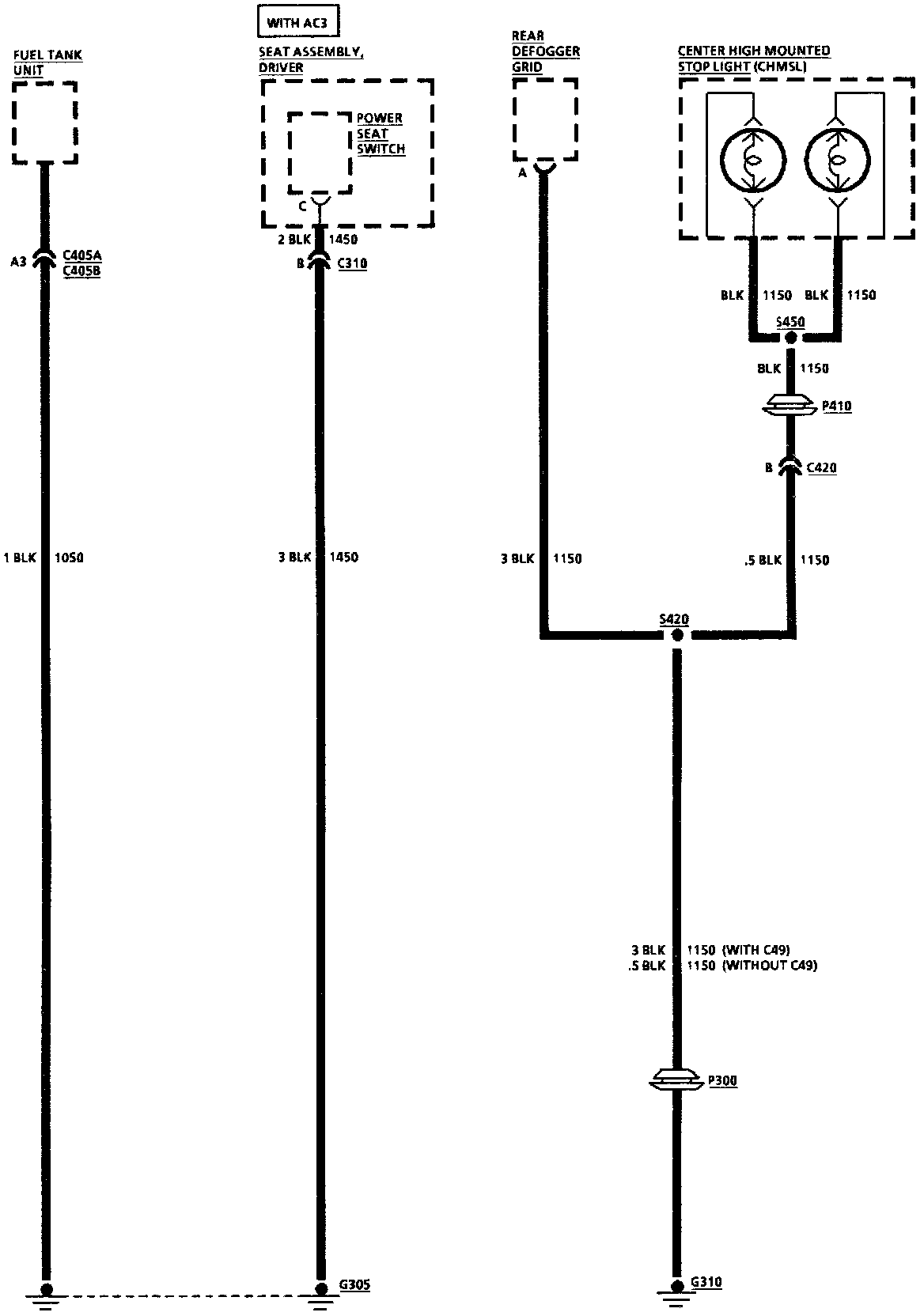

Ground Distribution: Fuel Pump/Sender, Power Seats, Rear Defogger, CHMSL:
