Ground Distribution
>>
Coolant Lev. Sensor, Forward Lamp, High Blower Relay
Coolant Lev. Sensor, Forward Lamp, High Blower Relay

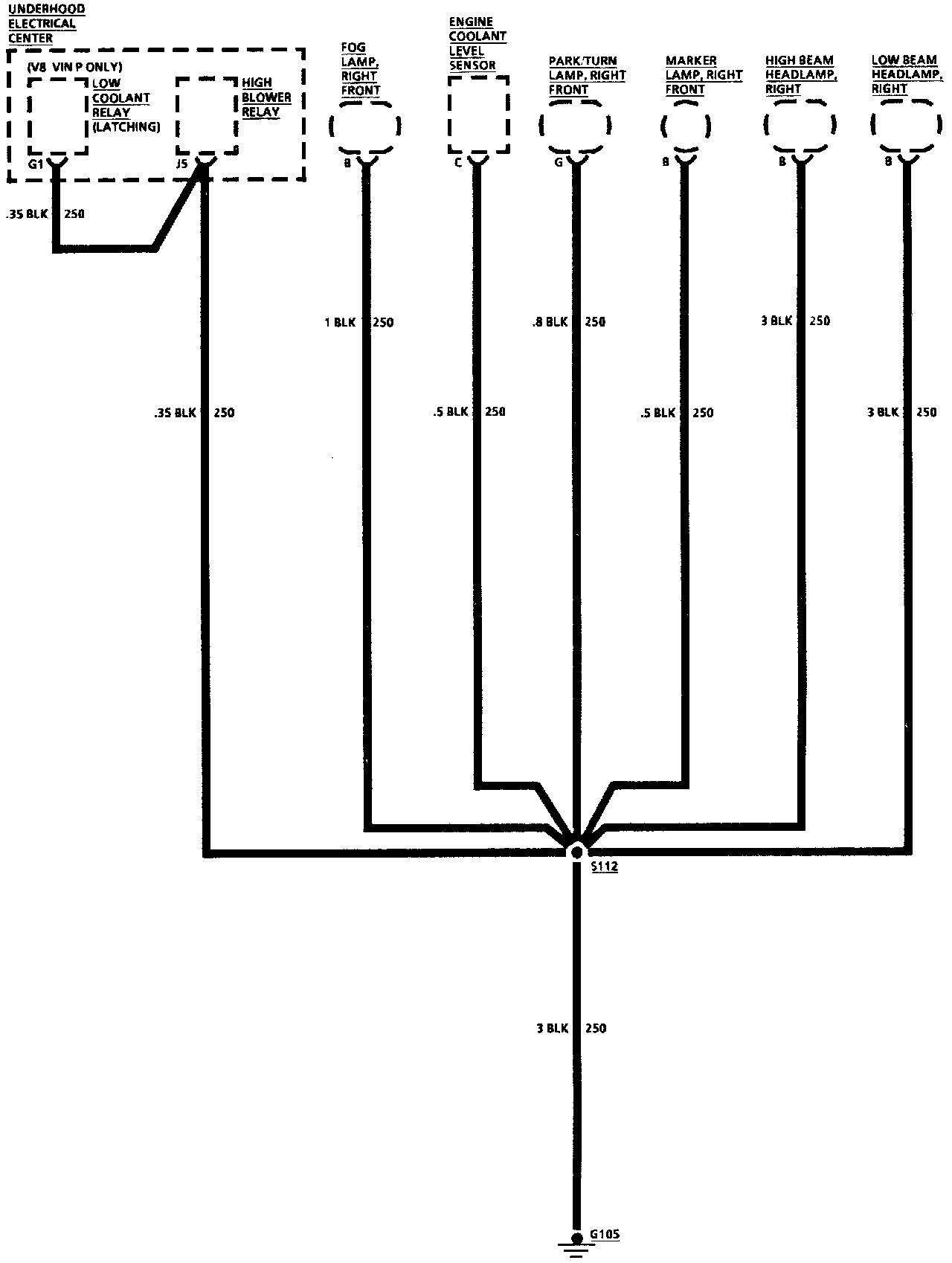

Ground Distribution: Coolant Level Sensor, Forward Lamp & High Blower Relay:
