ABS & SIR

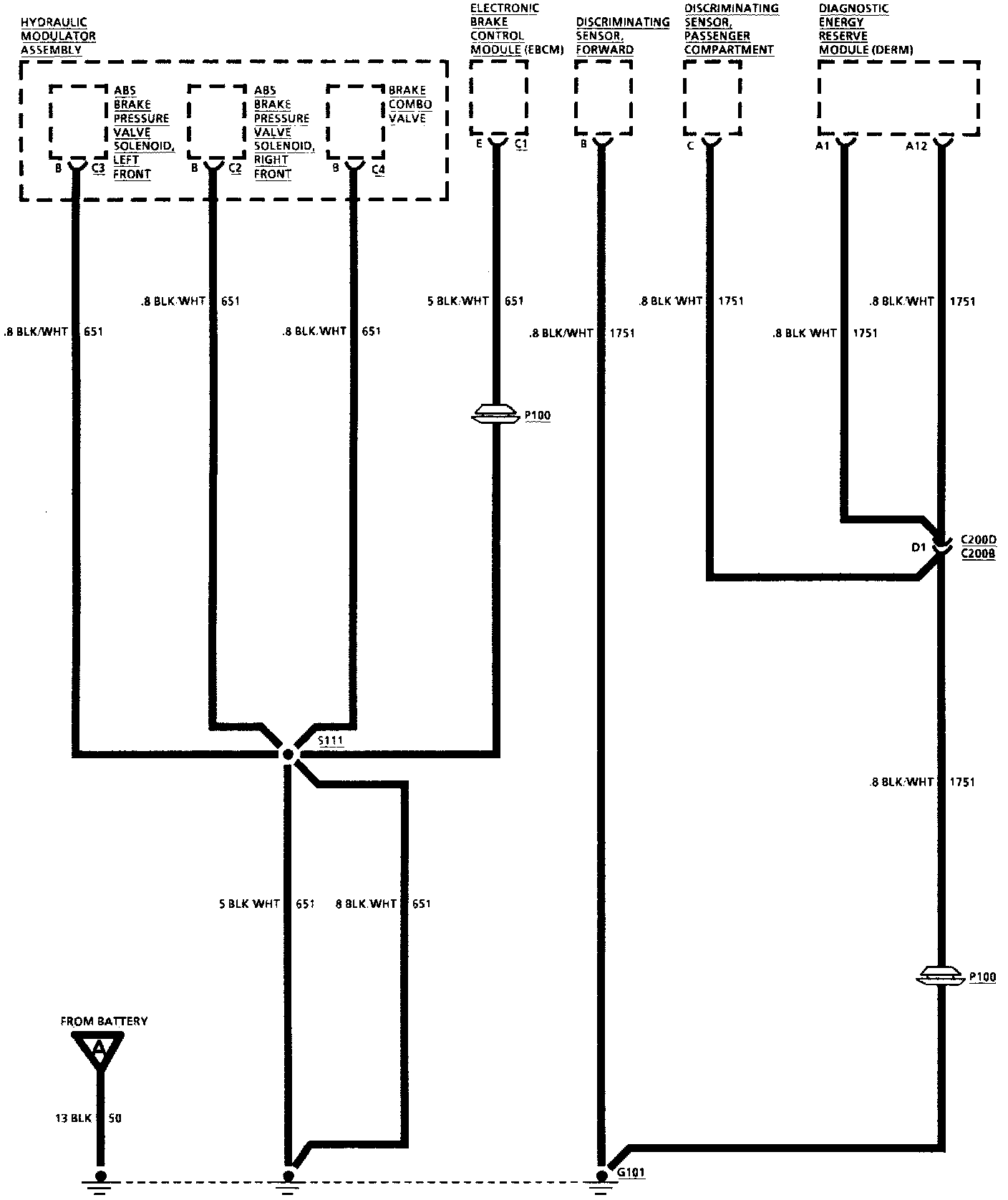

Ground Distribution Antilock Brake System (ABS) & Supplemental Inflatable Restraint (SIR):
