Home
>>
Chevrolet
>>
1993
>>
Camaro V8-350 5.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse Block Diagrams
>>
I/P Fuses
>>
Fuses 4 & 6
Fuses 4 & 6

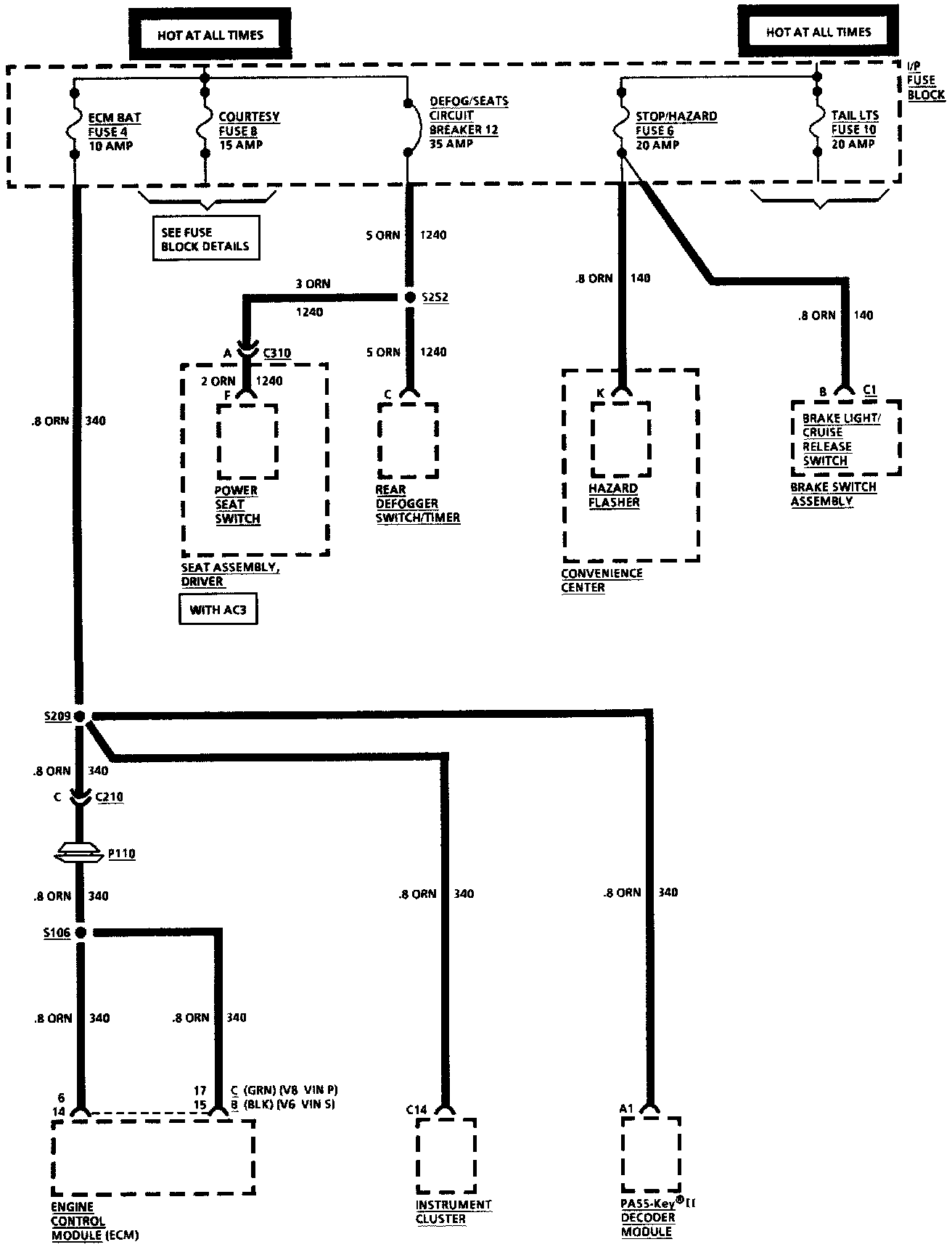

Fuse Block Details: I/P Fuses 4, 6 & Defog/Seats Circuit Breaker:
