Drive Belt: Service and Repair

Remove

1. Battery negative cable assembly.

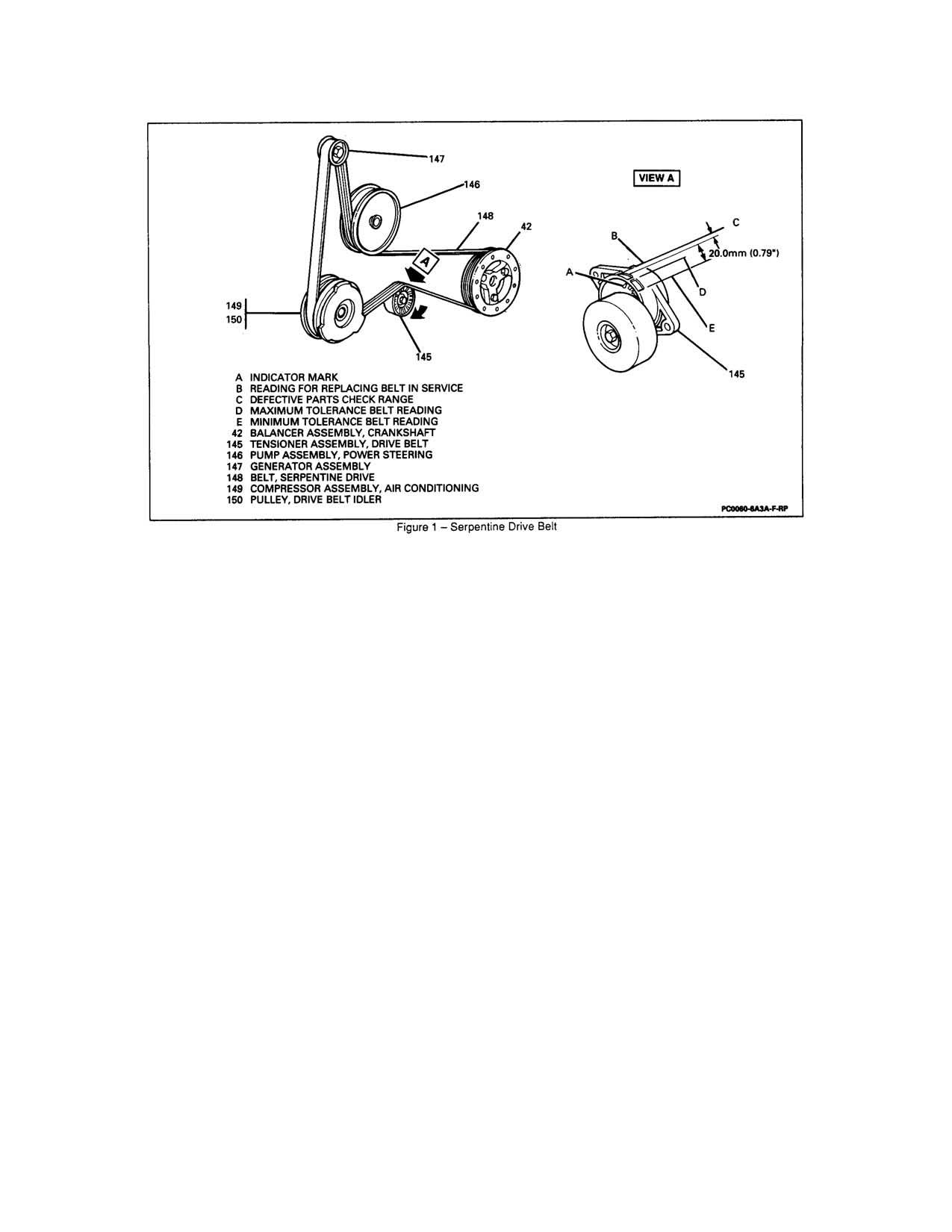

2. Lift drive belt tensioner (145) downward (clockwise) off drive belt (148) using a socket and handle on tensioner pulley bolt/screw.
3. Drive belt (148).

Clean
^ Accessory drive belt surfaces.

Install

1. Drive belt (148) over tensioner pulley by pushing down on drive belt tensioner assembly (145).

- Be sure drive belt (148) is aligned into proper grooves of accessory drive pulleys.

2. Battery negative cable assembly.
