Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1993
>>
Camaro V8-350 5.7L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Chart 1 Blower Operates at All Speeds Except Hi
Chart 1 Blower Operates at All Speeds Except Hi

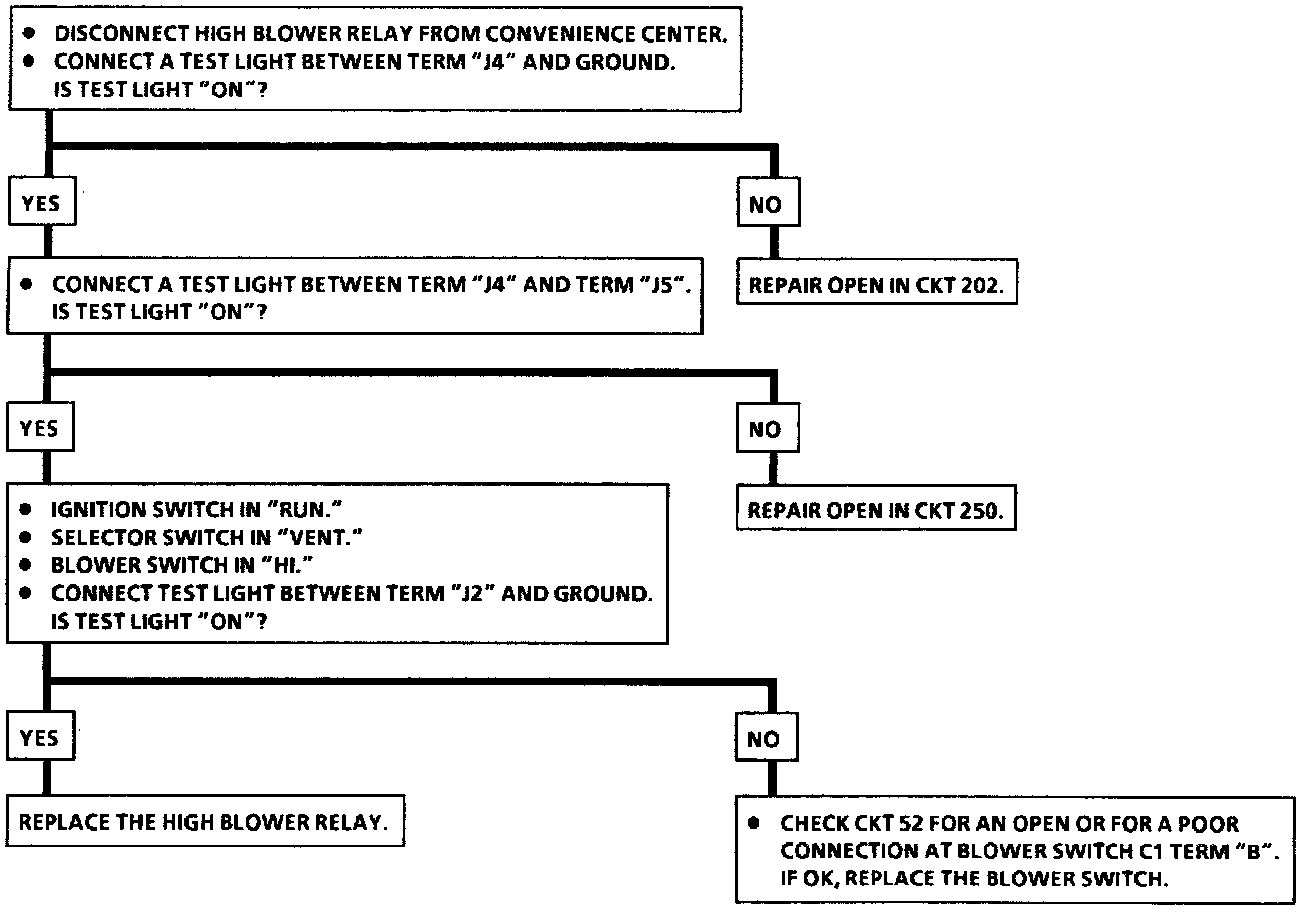

Chart #1 Blower Motor Does Not Operate In "Hi," But Does Operate At Other Speeds:
