Water/Coolant Pump

WATER PUMP (5.7L VIN P)

Water Pump:

TOOL REQUIRED
^ J-39089, Water pump driveshaft assembly O-ring seal installer.

REMOVE OR DISCONNECT
1. Electrical connectors from electric engine coolant fan assembly.
2. Right electric engine coolant fan assembly.
3. Block drain plug and knock sensor.
4. Drain engine coolant.
5. Install drain plug and knock sensor.
6. Air intake duct.
7. Air Cleaner assembly.
8. Upper and lower radiator hose from water pump.
9. Heater hoses from water pump and throttle body.
10. Electrical connector from coolant sensor.
11. Reposition coil and bracket.
12. Air pump and bracket.

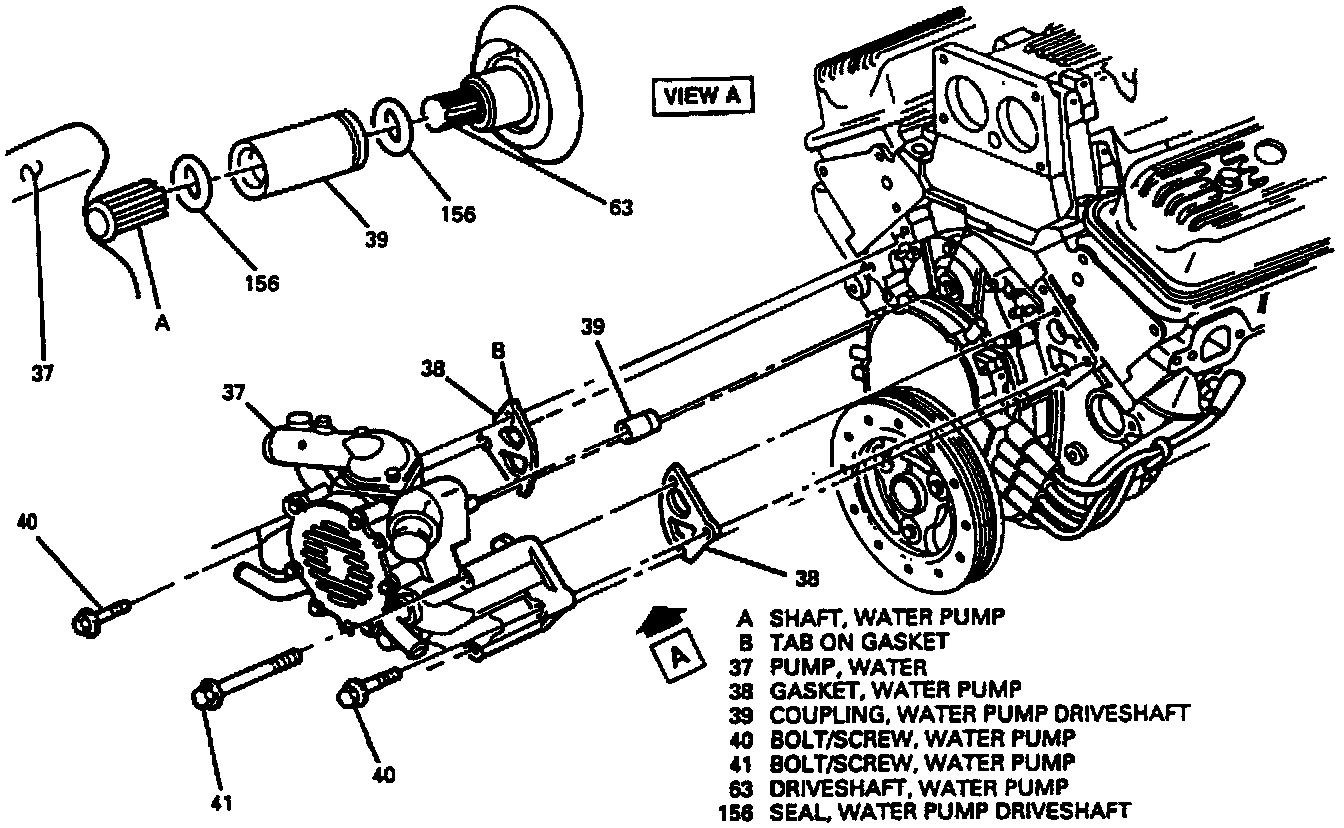

13. Water pump bolts/screws (40 and 41).
14. Water pump cover bolt/screw (37).
15. Water pump assembly (38).
16. Water pump gaskets (35).
17. Shaft coupling (39).

CLEAN
^ Water pump gasket surfaces.
^ Water pump bolts/screws (40 and 41).

INSTALL OR CONNECT
1. Shaft coupling.
2. Water pump gaskets.
3. Water pump assembly.
4. Water pump cover bolts/screws.

TIGHTEN
^ Pump cover bolts/screws to 41 Nm (30 lb ft).

5. Water pump bolts/screws.

TIGHTEN
^ Bolts/screws to 41 Nm (30 lb ft).

6. Air pump and bracket.
7. Position coil and bracket.
8. Electrical connector to coolant sensor.
9. Heater hoses to water pump and throttle body.
10. Upper and lower radiator hose to water pump.
11. Air cleaner assembly.
12. Air intake duct.
13. Refill cooling system.
14. Electrical connectors to electric engine coolant fan assembly.
15. Inspect for leaks, after running engine to normal operating temperature.
