Home
>>
Chevrolet
>>
1993
>>
Camaro V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Windows
Windows

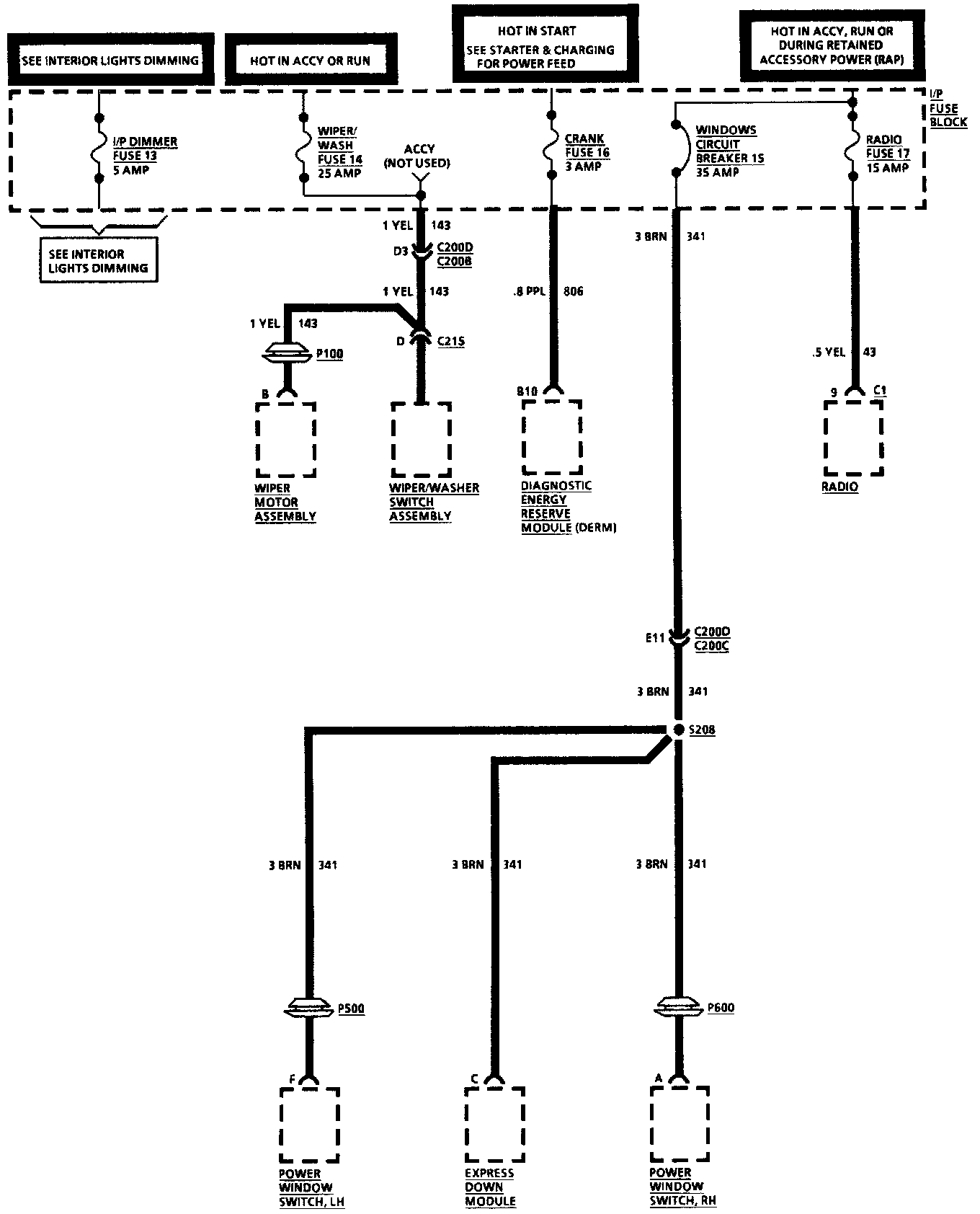

Fuse Block Details: I/P Fuses 14, 16, 17 & Windows Circuit Breaker:
