Antilock Brakes / Traction Control Systems
>>
Wiring Diagrams
Wiring Diagrams

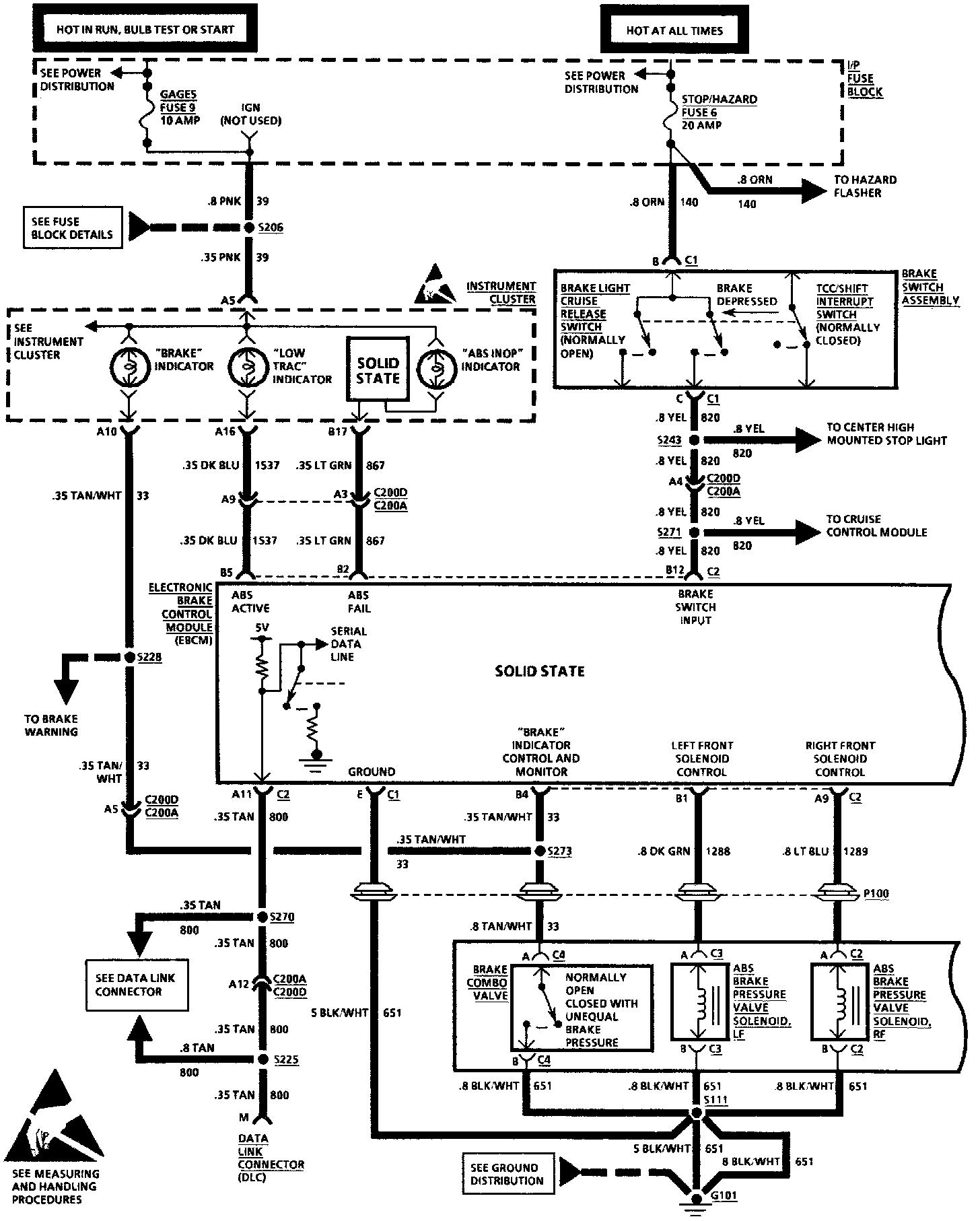

Antilock Brakes:

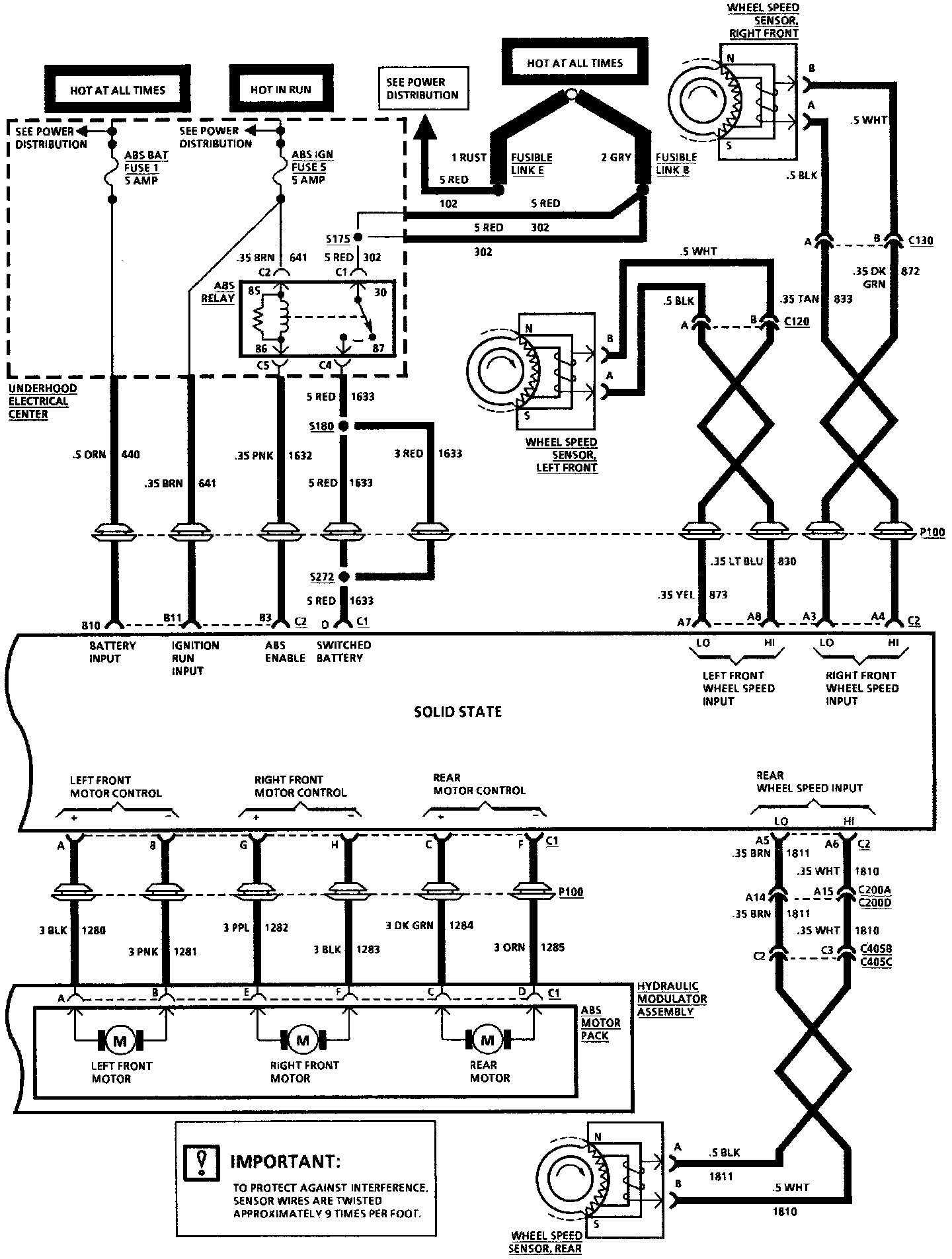

Antilock Brakes Cont.:
