Home
>>
Chevrolet
>>
1993
>>
Beretta L4-134 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

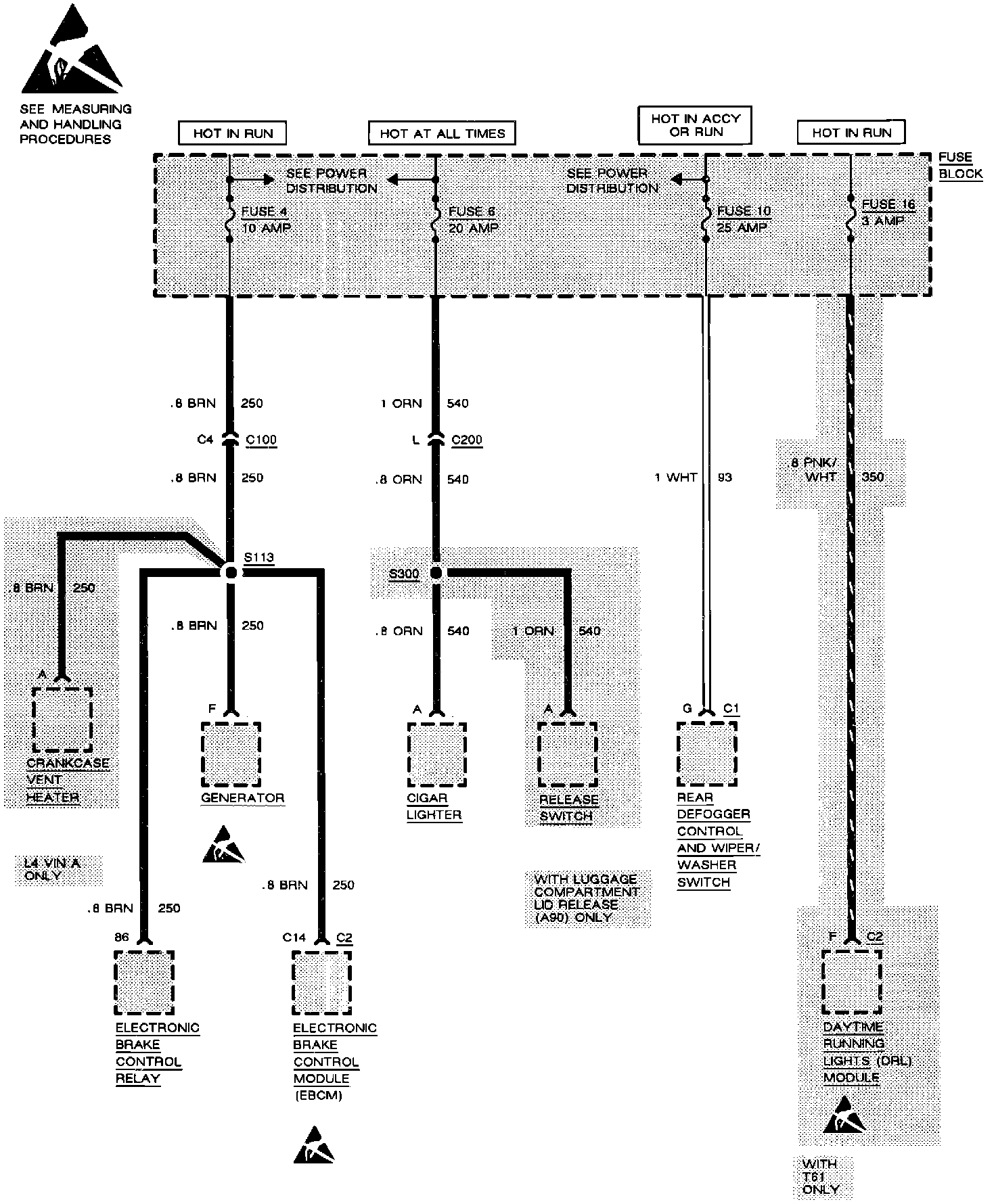

Fuses 4, 6, 10, and 16
Fuses 4, 6, 10, and 16
Wiring Diagram:
