Home
>>
Chevrolet
>>
1993
>>
Beretta L4-134 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

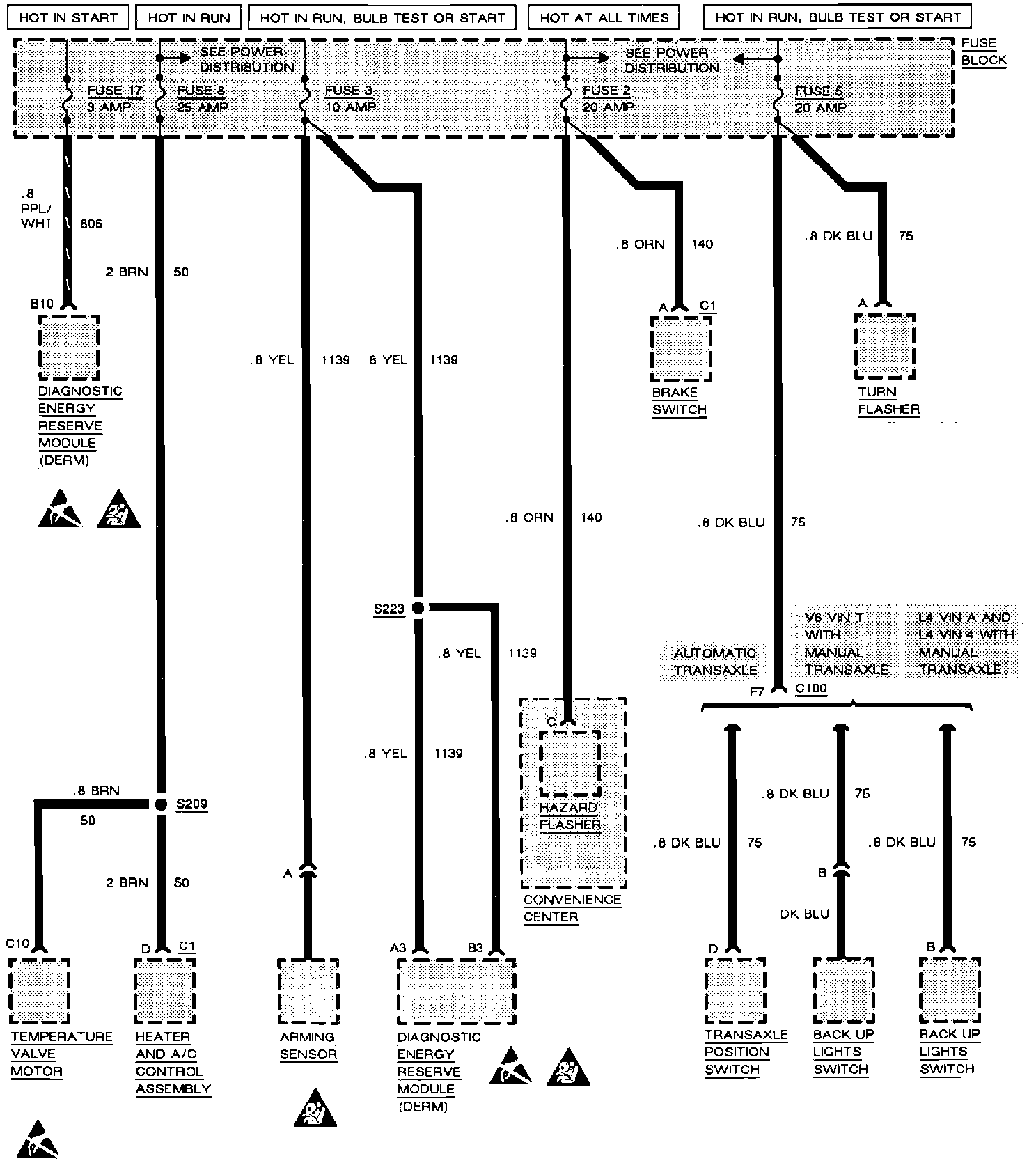

Fuses 2, 3, 5, 8, and 17
Fuses 2, 3, 5, 8, and 17
Wiring Diagram:
