Chevrolet
>>
1993
>>
Beretta L4-134 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse 7 and 11
Fuse 7 and 11

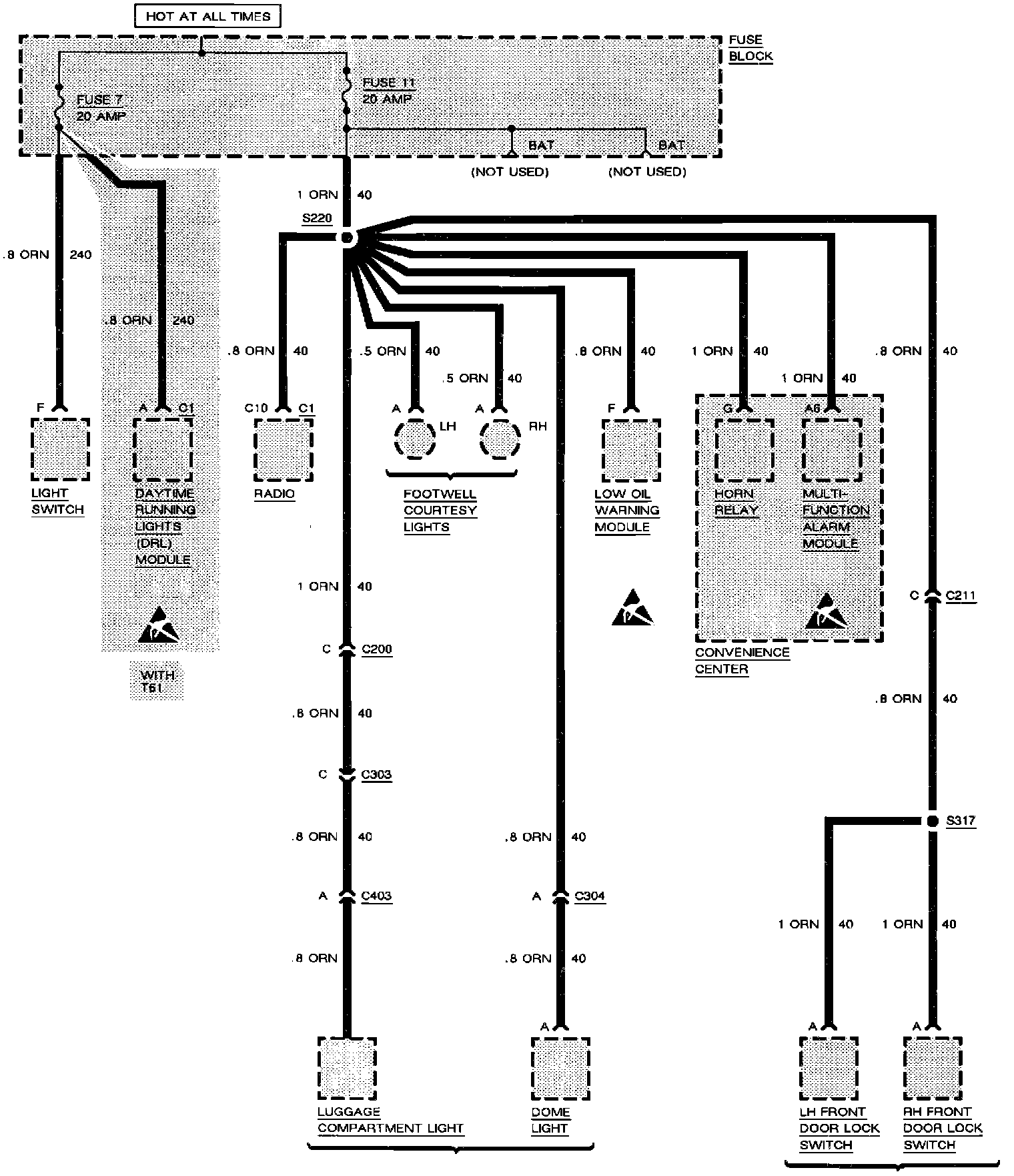

Wiring Diagram:
