Beretta L4-134 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G106 and G107
G106 and G107

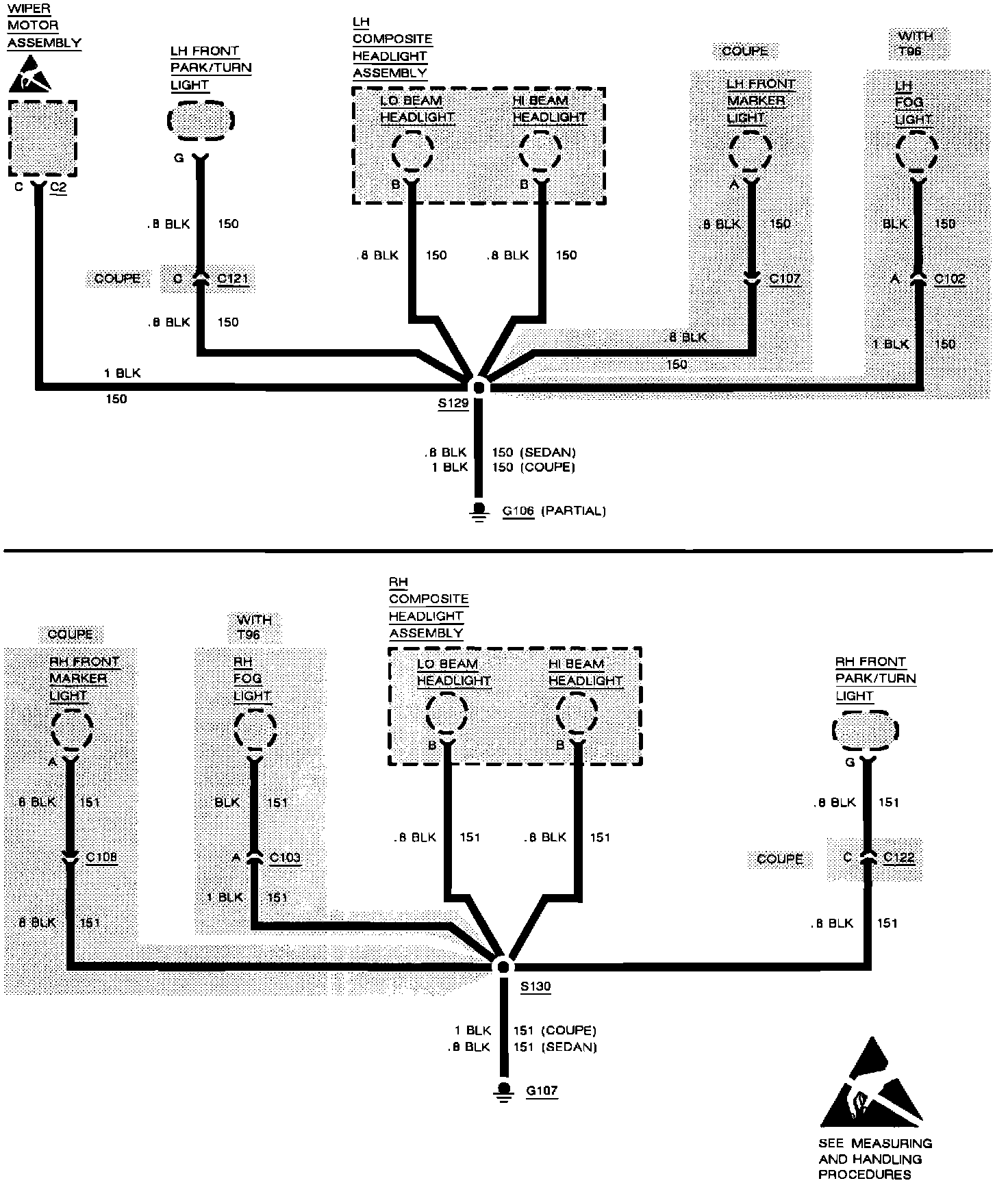

Wiring Diagram:
