Beretta L4-134 2.2L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Charts - Base Cluster
>>
Chart 2
Chart 2

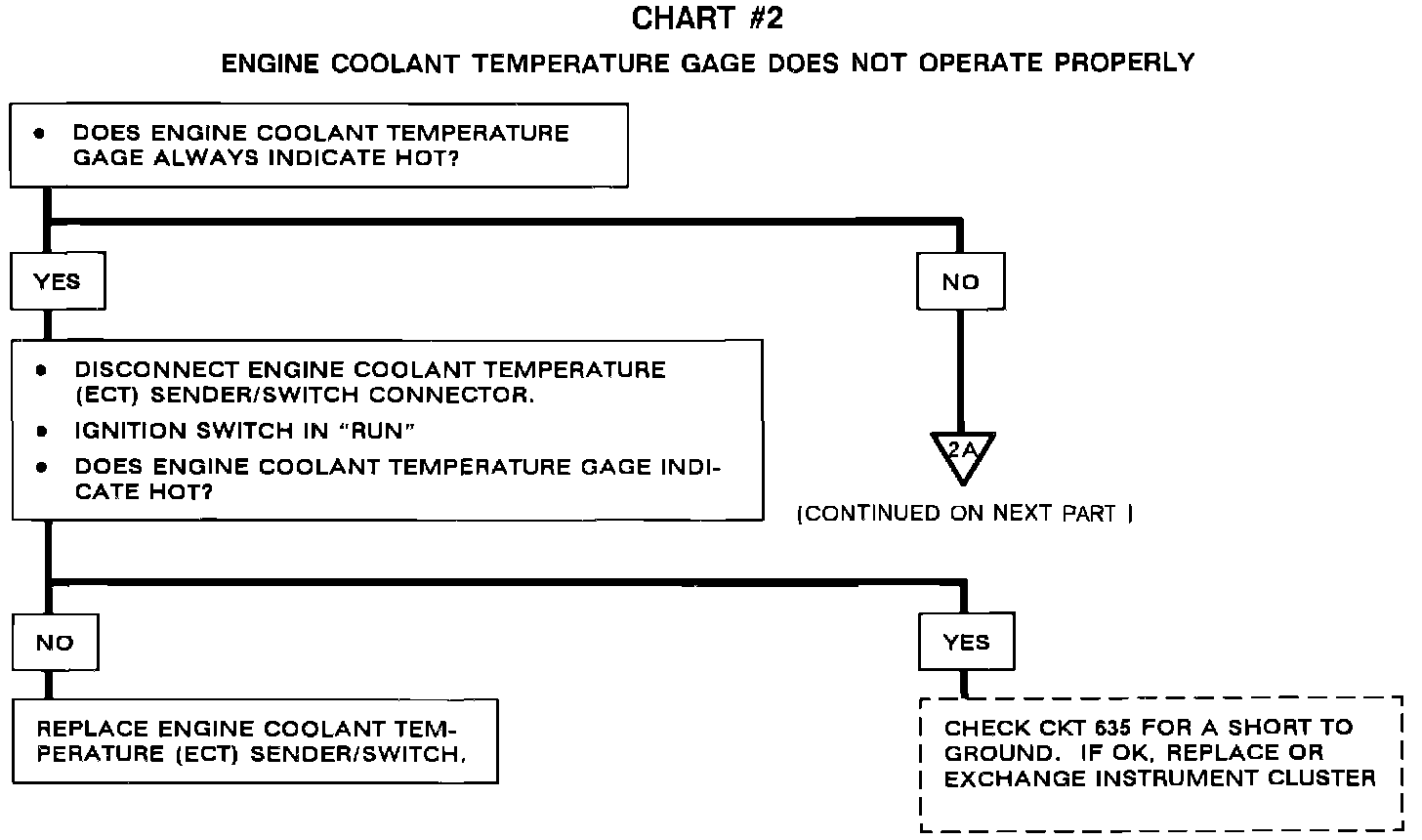

Chart #2:

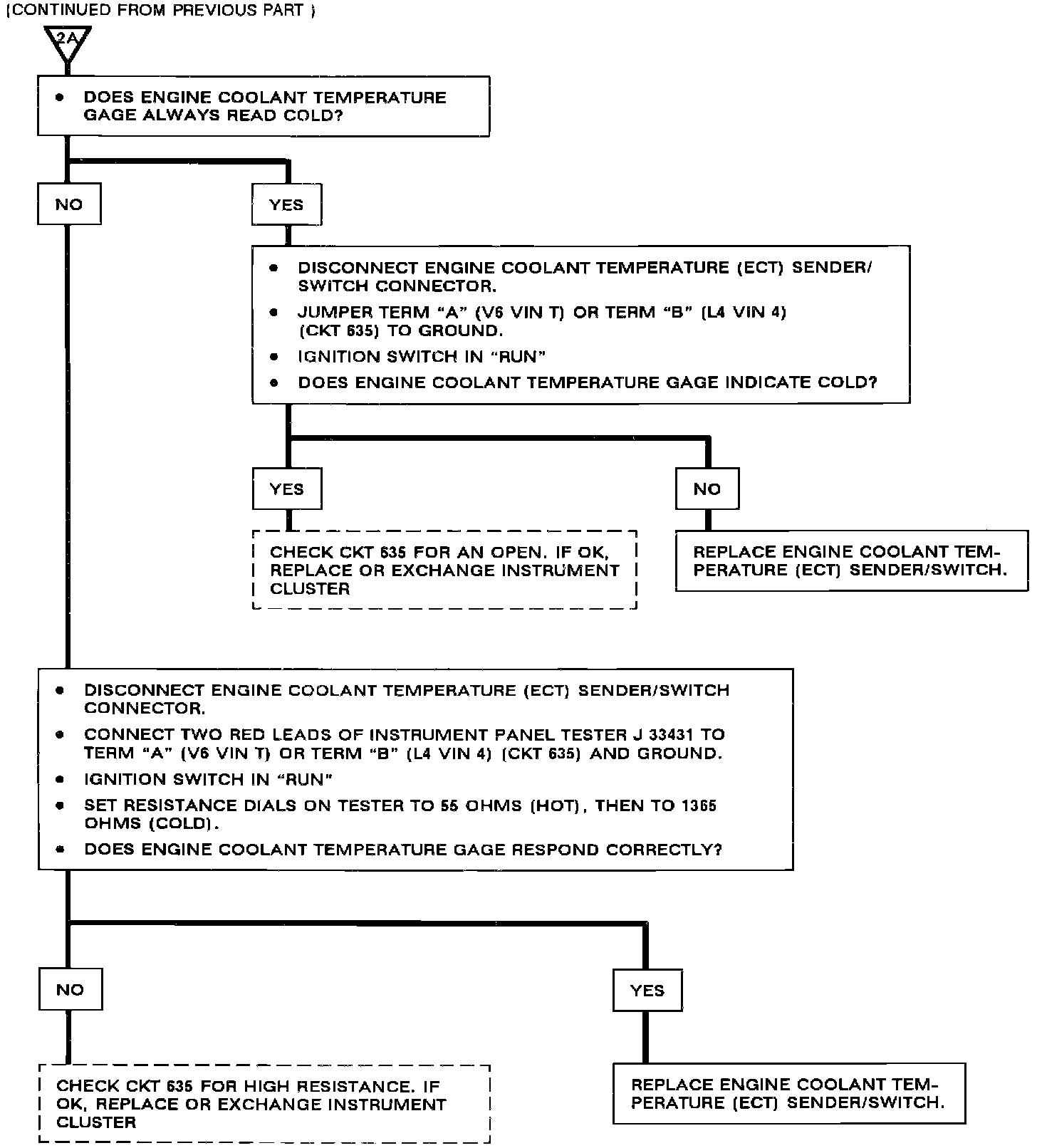

Chart #2A:
