Expansion Valve: Locations

TXV:

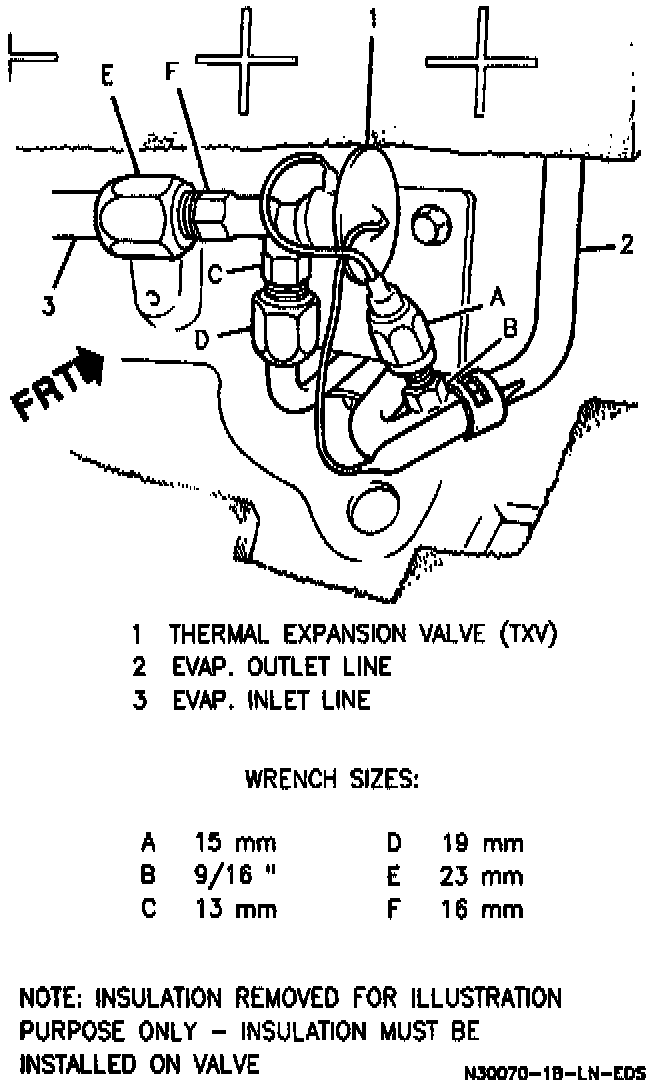

The Thermal Expansion Valve is located under RH side of I/P, at evaporator inlet.
