Chevrolet
>>
1993
>>
Beretta L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Exterior Lamps
>>

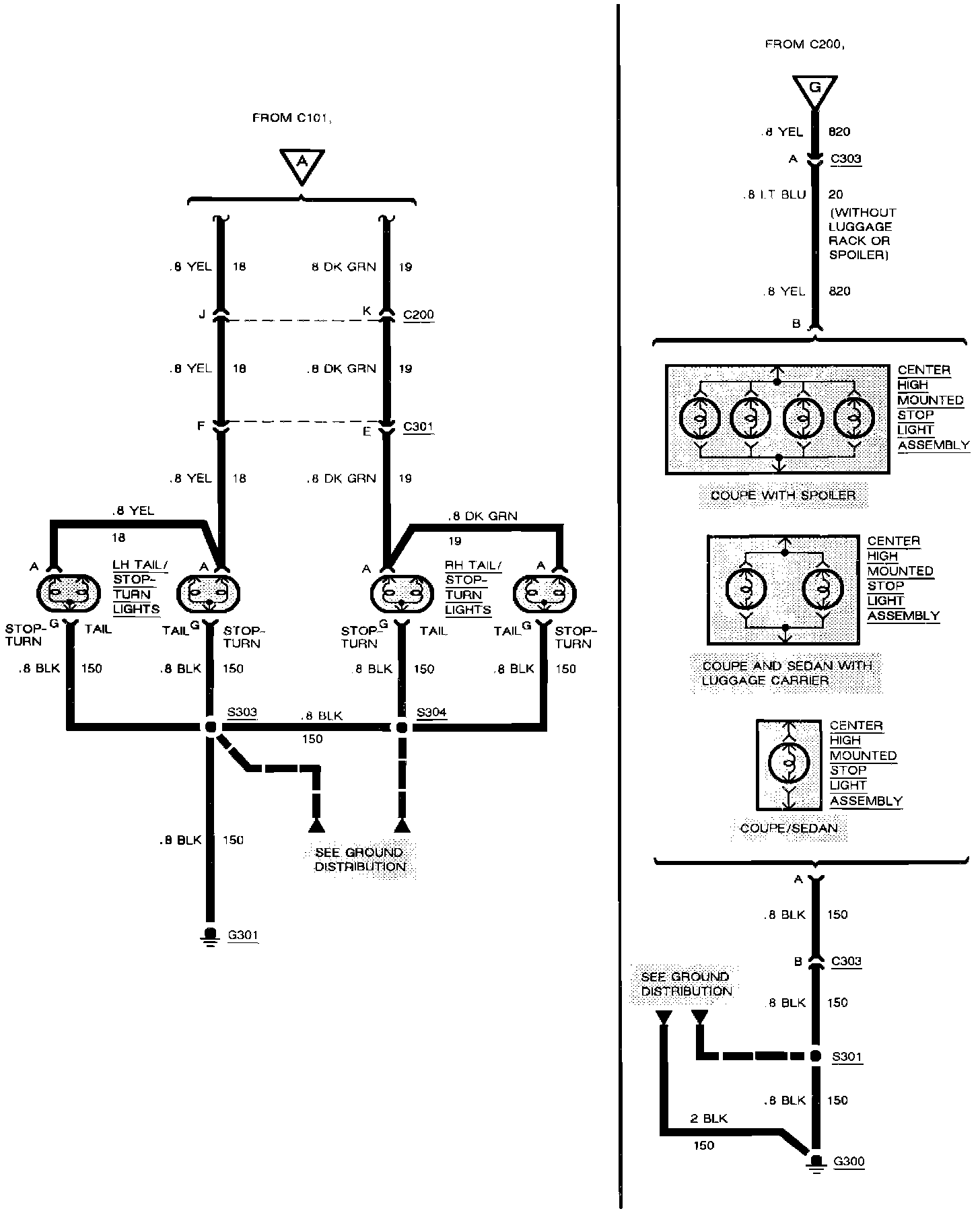

Stop-Turn/High Level Stop
Stop-Turn/High Level Stop
Wiring Diagrams:
