Chart 2 Door Locks Operate From Only One Door Lock Switch
Chart 2 Door Locks Operate From Only One Door Lock Switch

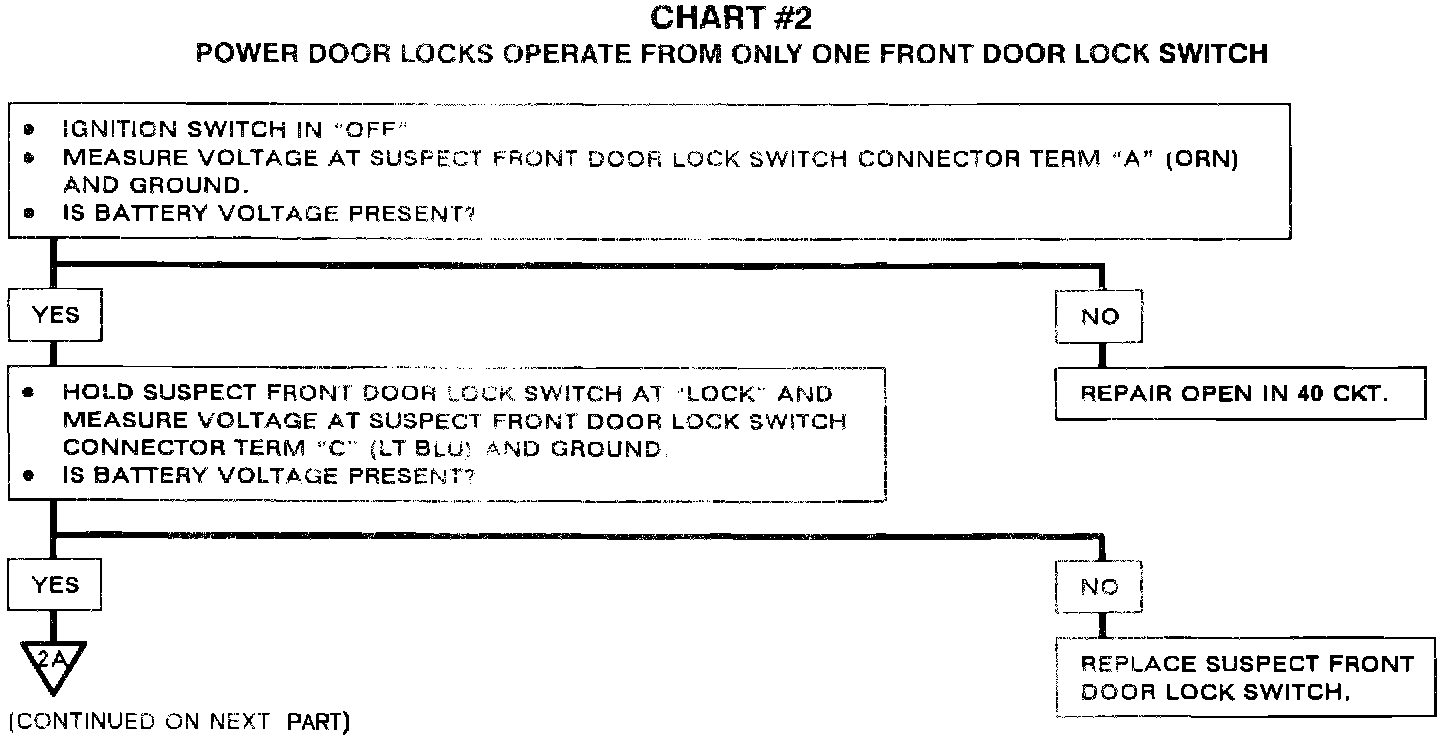

Chart #2:

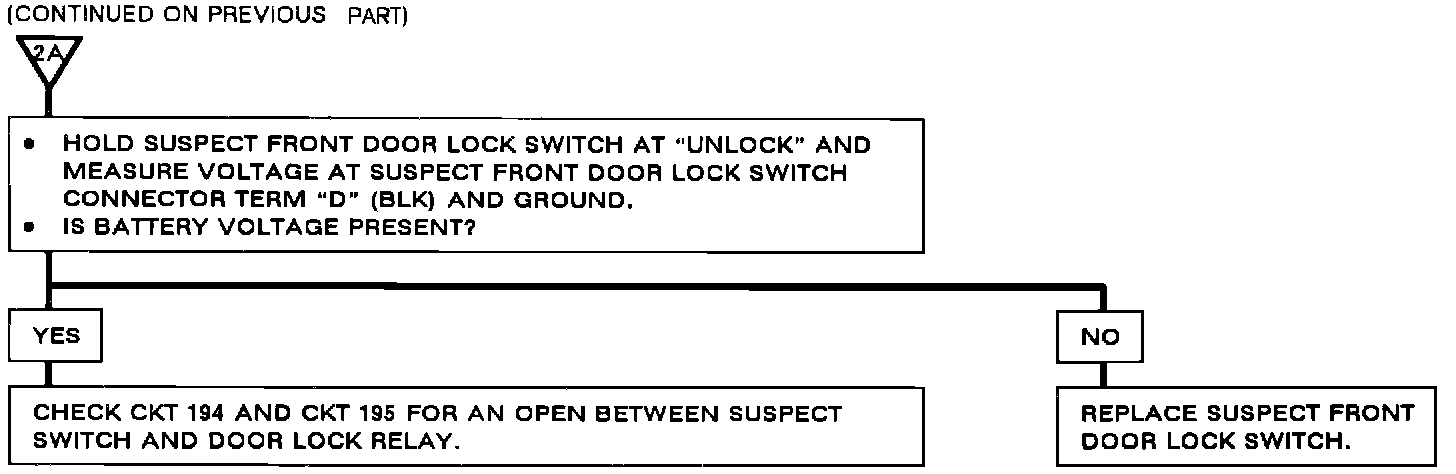

Chart #2A:
