FRONT WINDOW GUIDE RETAINER - FRONT DOOR

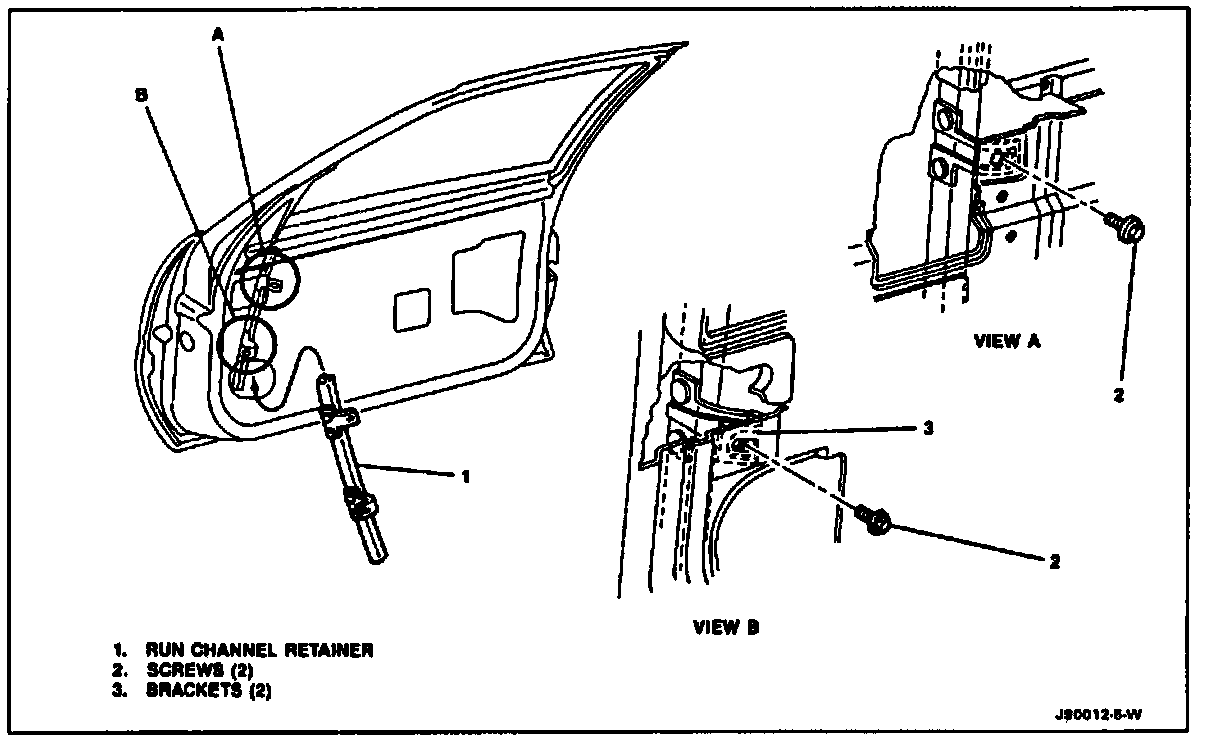

Front Window Guide Retainer (Coupe):

Front Window Guide Retainer - Front Door (Sedan):

Remove or Disconnect

1. Door trim panel.
2. Water deflector.
3. Screws.
4. Front window guide retainer.

Install or Connect

1. Front window guide retainer.
2. Screws.

Tighten
Screws to 6 N.m (53 lb in).

3. Water deflector.
4. Door trim panel.
