Home >> Chevrolet >> 1992 >> Lumina L4-151 2.5L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Panel, Tail and Elec Fuse

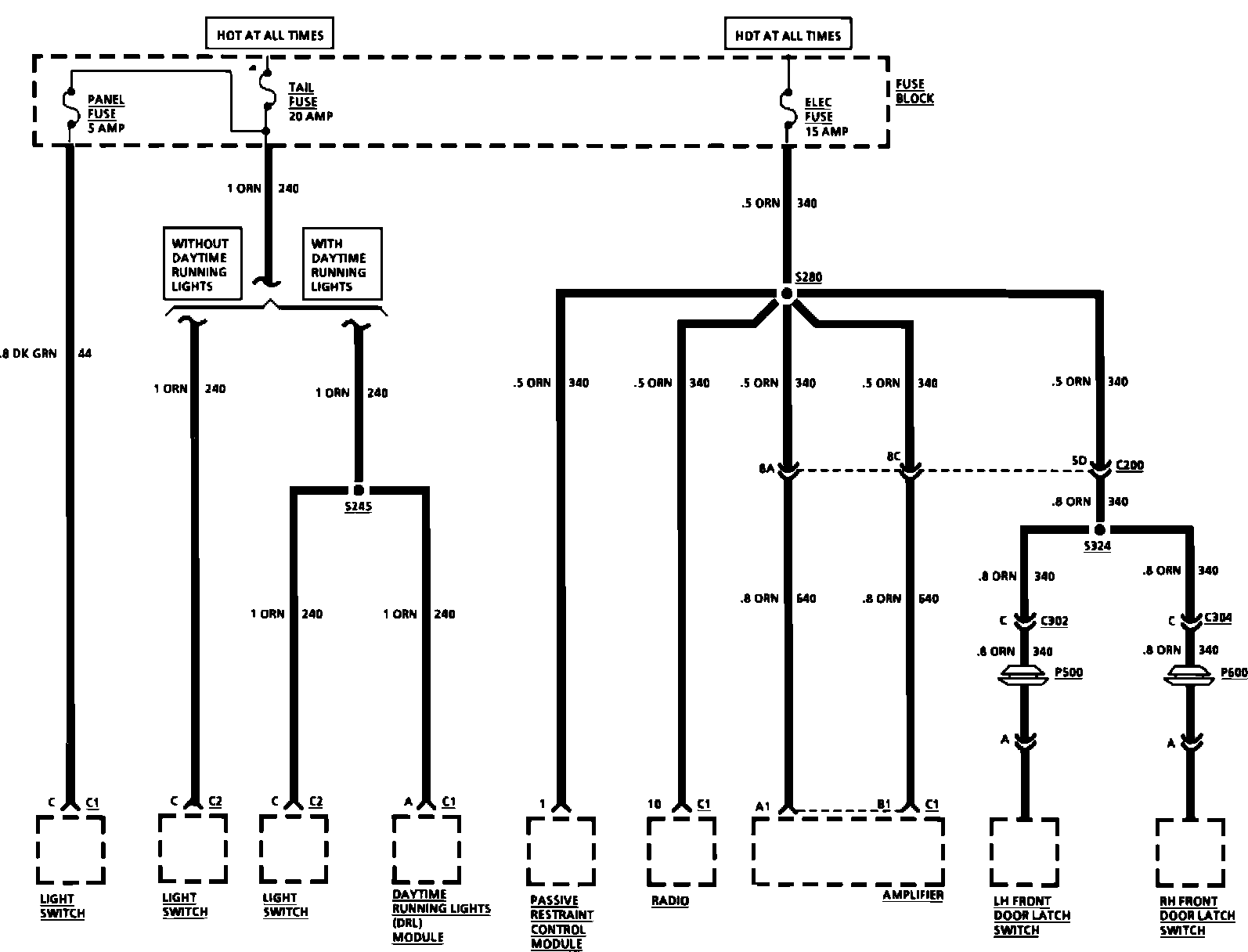

Panel, Tail and Elec Fuse

Fuse Block Details: Panel, Tail And Elec Fuse:
