Home
>>
Chevrolet
>>
1992
>>
Lumina L4-151 2.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
LS Electrical Center
LS Electrical Center

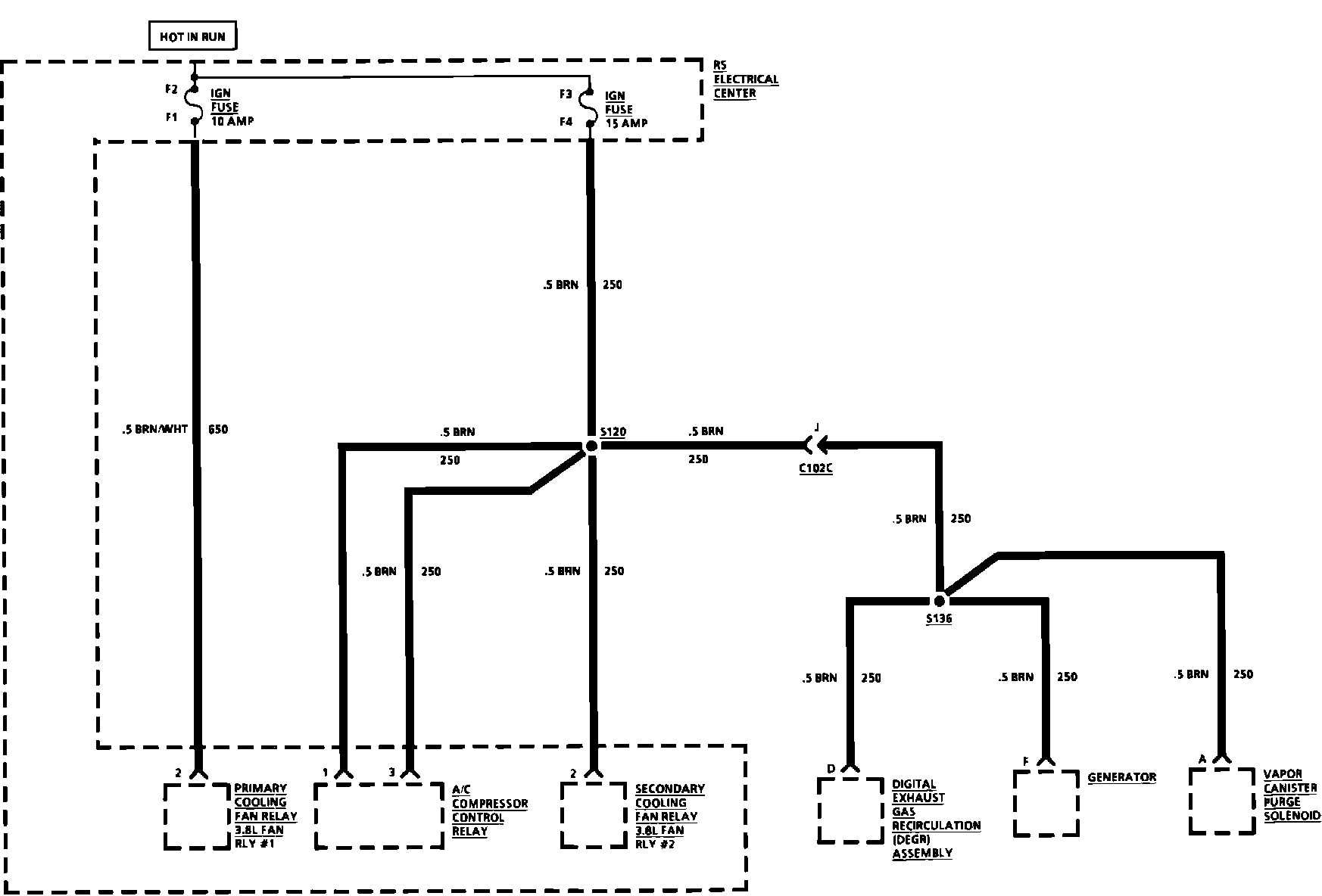

Fuse Block Details: LS Electrical Center:
