RS Electrical Center

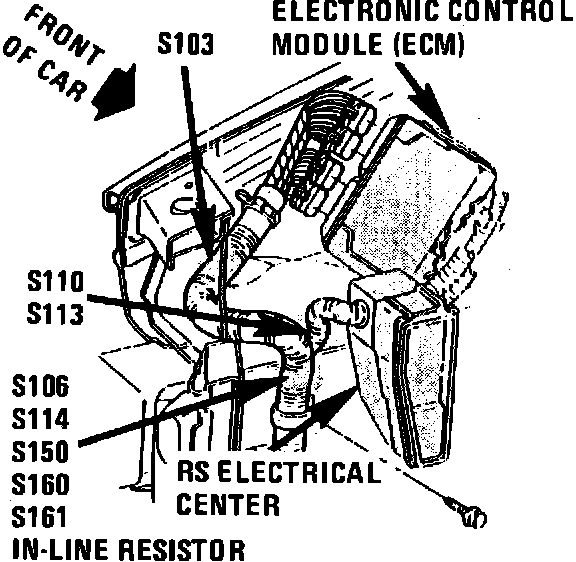

RH Front Of Engine Compartment:

RH Side Of Engine Compartment, Front Of Strut Tower

Applicable to: 1991 Cutlass Supreme w/2.3L/4-138

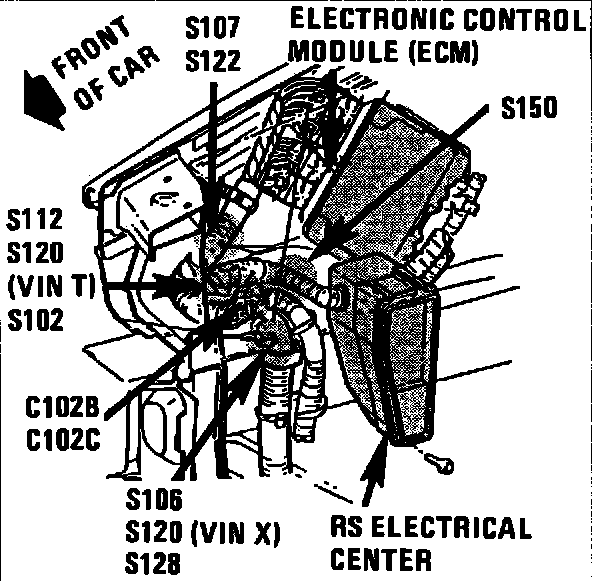

RH Front Of Engine Compartment:

RH Side Of Engine Compartment, Front Of Strut Tower

Applicable to: Regal w/3800/V6-231

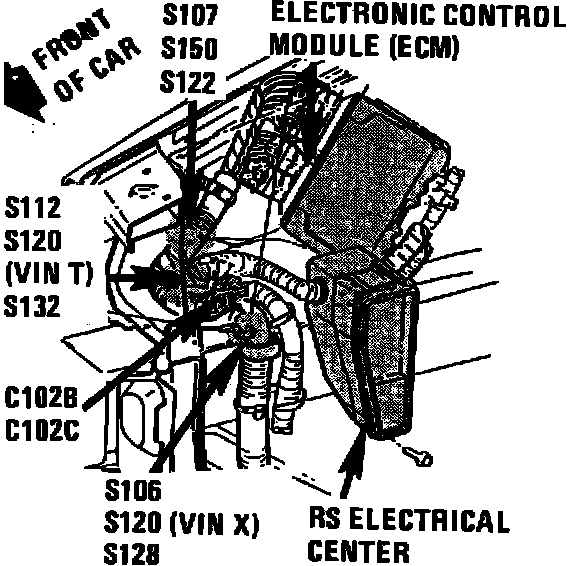

RH Front Of Engine Compartment:

RH Side Of Engine Compartment, Front Of Strut Tower

Applicable to: 1991 Cutlass Supreme w/3.1L/V6-19

RH Front Of Engine Compartment:

RH Side Of Engine Compartment, Front Of Strut Tower

Applicable to: 1991 Regal w/3.1L/V6-192

RH Front Of Engine Compartment:

RH Side Of Engine Compartment, Front Of Strut Tower

Applicable to: 1992 Cutlass Supreme w/3.1L/V6-19

RH Front Of Engine Compartment:

RH Side Of Engine Compartment, Front Of Strut Tower

Applicable to: 1992 Regal w/3.1L/V6-192

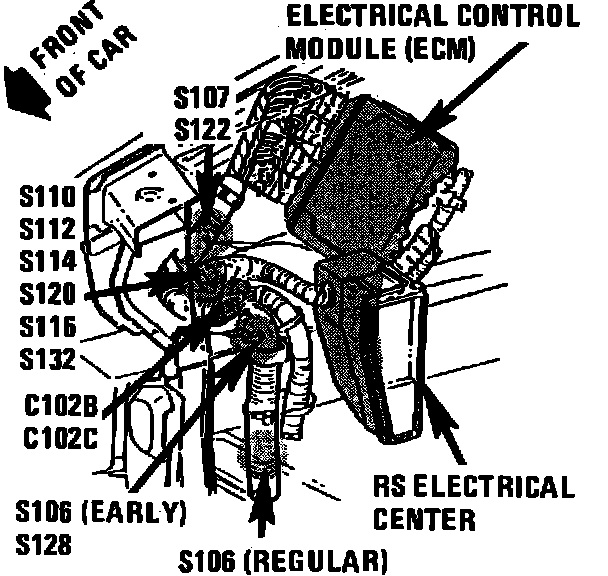

RH Front Of Engine Compartment:

RH Side Of Engine Compartment, Front Of Strut Tower

Applicable to: 1991 Grand Prix

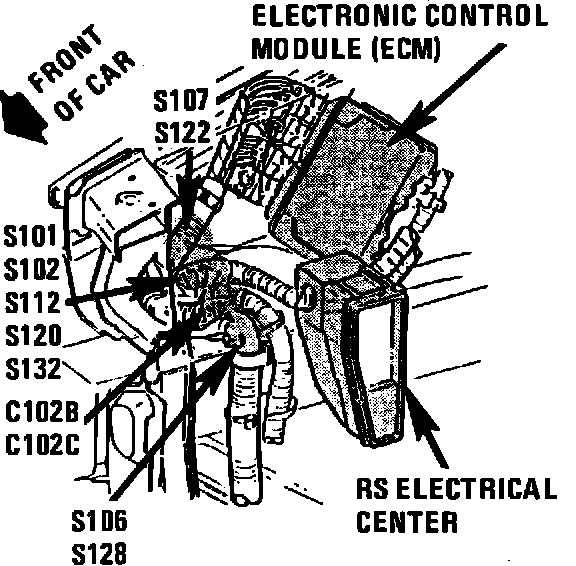

RH Front Of Engine Compartment:

RH Side Of Engine Compartment, Front Of Strut Tower

Applicable to: 1991 Lumina & 1992 Grand Prix

RH Front Of Engine Compartment.:

RH Side Of Engine Compartment, Front Of Strut Tower

Applicable to: Lumina
