A/T - Improperly Molded Solenoid

9227chevy01

Number:
92-123-7A

Section:
7A

Date:
FEB. 1992

Corporate Bulletin No.:
277105

ASE No.:
A2



Subject:
IMPROPERLY MOLDED SOLENOID


Model and Year:
1992 LUMINA WITH 4T60E TRANSAXLE 1992 LUMINA (APV) WITH 4T60E TRANSAXLE


TRANSAXLE APPLICATIONS:
HYDRA-MATIC 4T60E (M13)
SUBJECT:
Improperly Molded Solenoid
(Solenoid "A," "B" and/or "TCC/VCC")

TRANSAXLE MODELS:
All
VEHICLE APPLICATIONS:
1992 W - Car
1992 U - Van

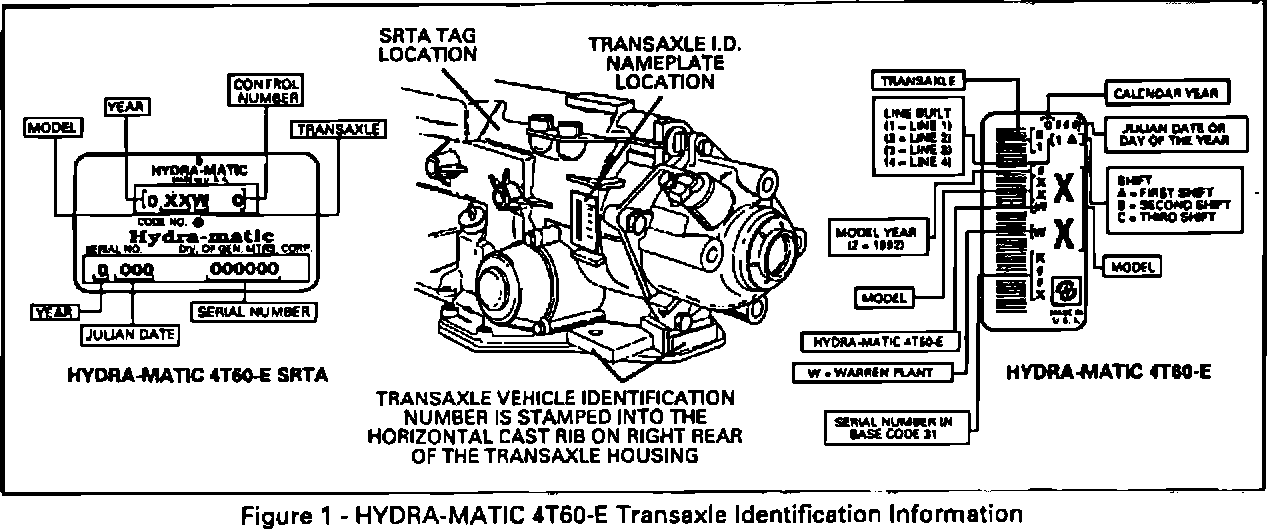

Condition: (Figure 1) Some vehicles equipped with a HYDRA-MATIC 4T60E (RPO M13) trans-axle built between August 14, 1991 (Julian Date 226) and September 16, 1991 (Julian Date 259), may exhibit erratic shifts. Depending on the degree of solenoid walk-out, the following conditions may exist:

Solenoid Condition
"A" No Drive/Slips In Drive
"B" 4th Gear Start
"TCC/VCC" No Drive/Slips In Drive





Cause: (Figure 2)
Some solenoids may have the molded plastic housing upside down. This can affect the holding ability of the spring retainer clip (314) to the solenoid assembly (315) and allow the spring retainer clip to become unclipped from the solenoid housing. If the spring retainer clip should become unclipped, the shift solenoid may separate from the control valve assembly (301), and cause the solenoid to become ineffective.

NOTE:
Customers who drive on rough surfaced roads or after hitting a bump may be more incline to knock the spring retainer clip loose from an affected solenoid.

Correction:
When servicing any transaxle where the shift solenoid is not secured to the control valve assembly, it is essential to check the solenoid for the above mentioned condition before reassembling. If the solenoid is improperly molded, it MUST be replaced.

Service Procedure:
If the transaxle contains an improperly molded shift solenoid assembly, replace the solenoid with the part listed under "Service Parts Information."


Service Parts Information:
Part Number Description Model Usage
10478108 Solenoid Assembly ("A") All
10478108 Solenoid Assembly ("B") All
10478108 Solenoid Assembly (VCC/TCC) All

Parts are currently available from GMSPO.

Service Manual Reference:
Complete service procedures are covered in appropriate Service Manuals.
