Single Exhaust

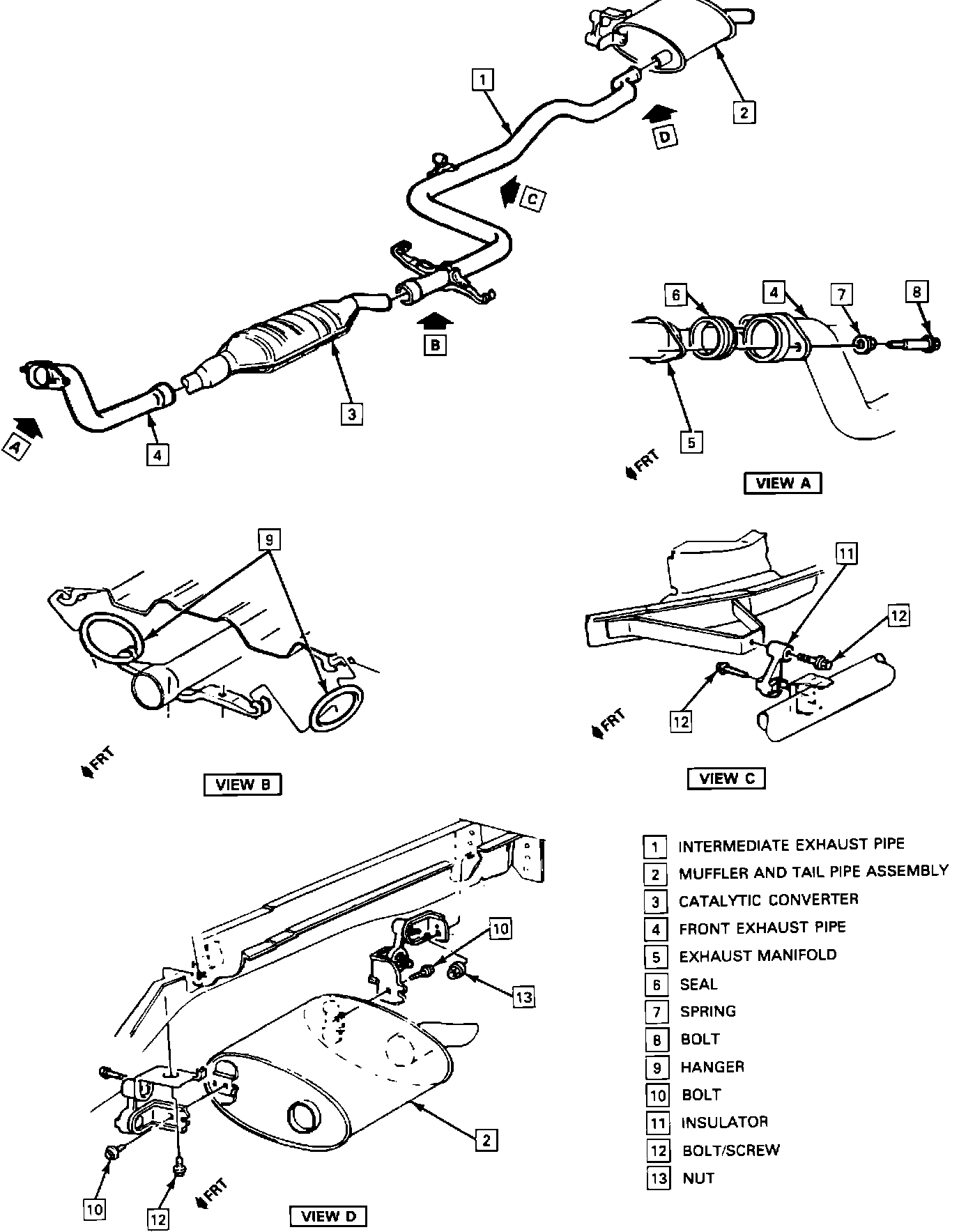

Exhaust Component Installation:

Catalyst Configuration:

REMOVE OR DISCONNECT
1. Raise vehicle and support catalytic converter.
2. Cut front exhaust pipe at the converter as shown in the figure. Cut as close to the weld as possible.
3. Cut intermediate pipe at converter.




INSTALL OR CONNECT
1. Clamps to replacement converter.
2. Converter.
^ Torque clamp nuts to 50 N-m (37 lbs. ft.).
3. Lower vehicle.
