Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G102 and G200
G102 and G200

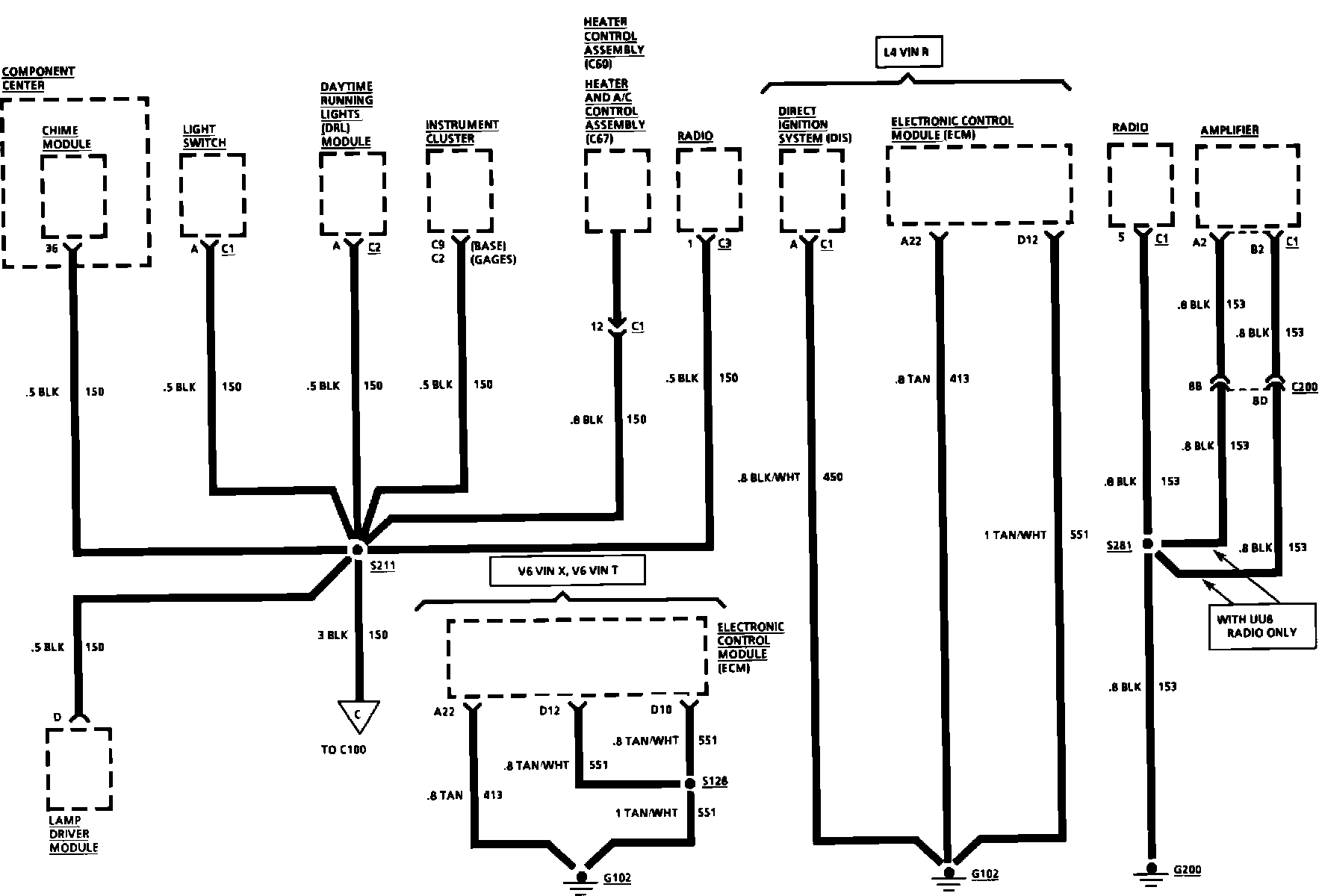

Ground Distribution: G102 And G200:
