Home
>>
Chevrolet
>>
1992
>>
Lumina L4-151 2.5L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Trunk Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

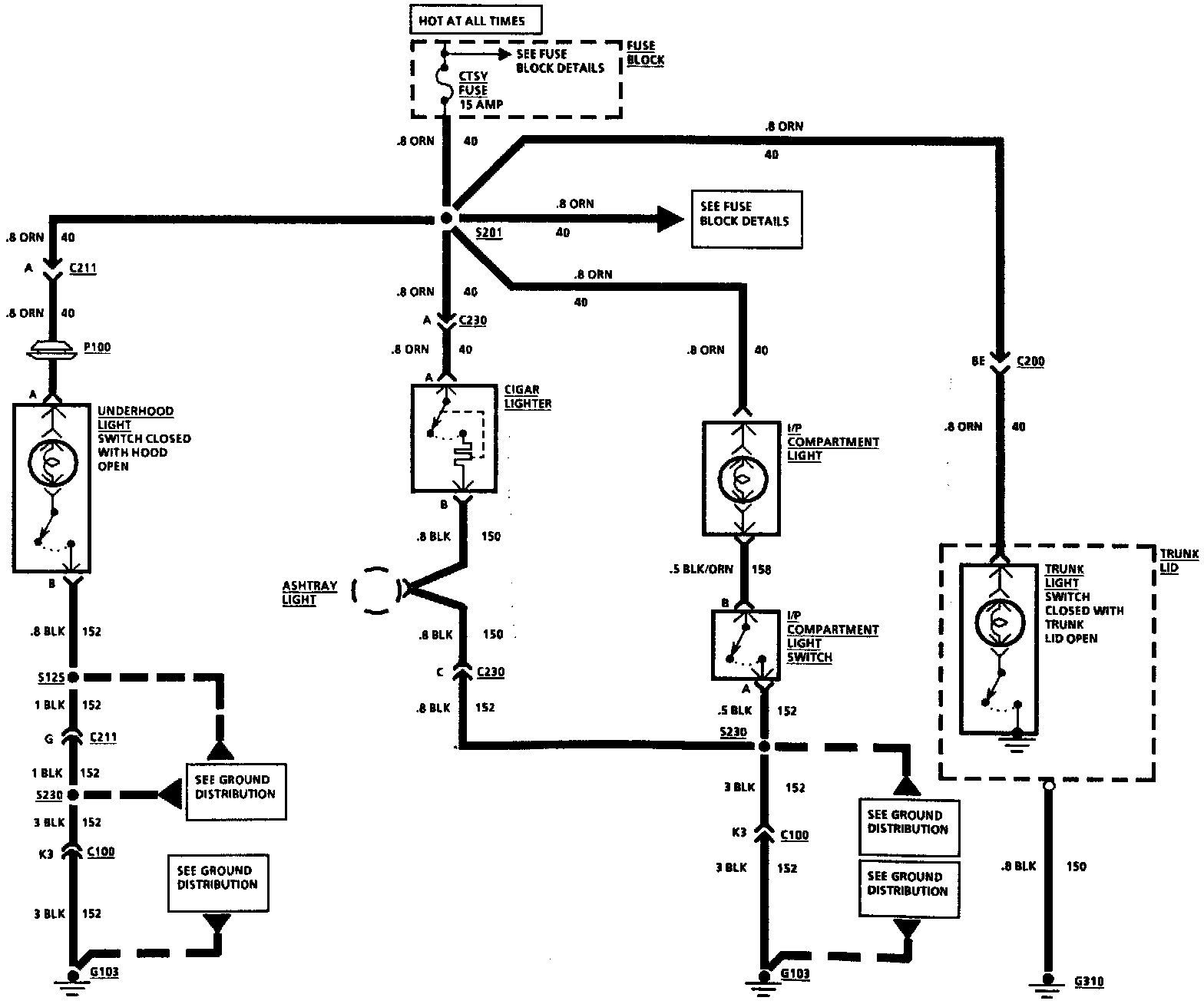

Interior Lights: Cigar Lighter, I/P Compartment Light, Trunk Light And Underhood Light:
