Chevrolet
>>
1992
>>
Lumina L4-151 2.5L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel
>>
Base Cluster
Base Cluster

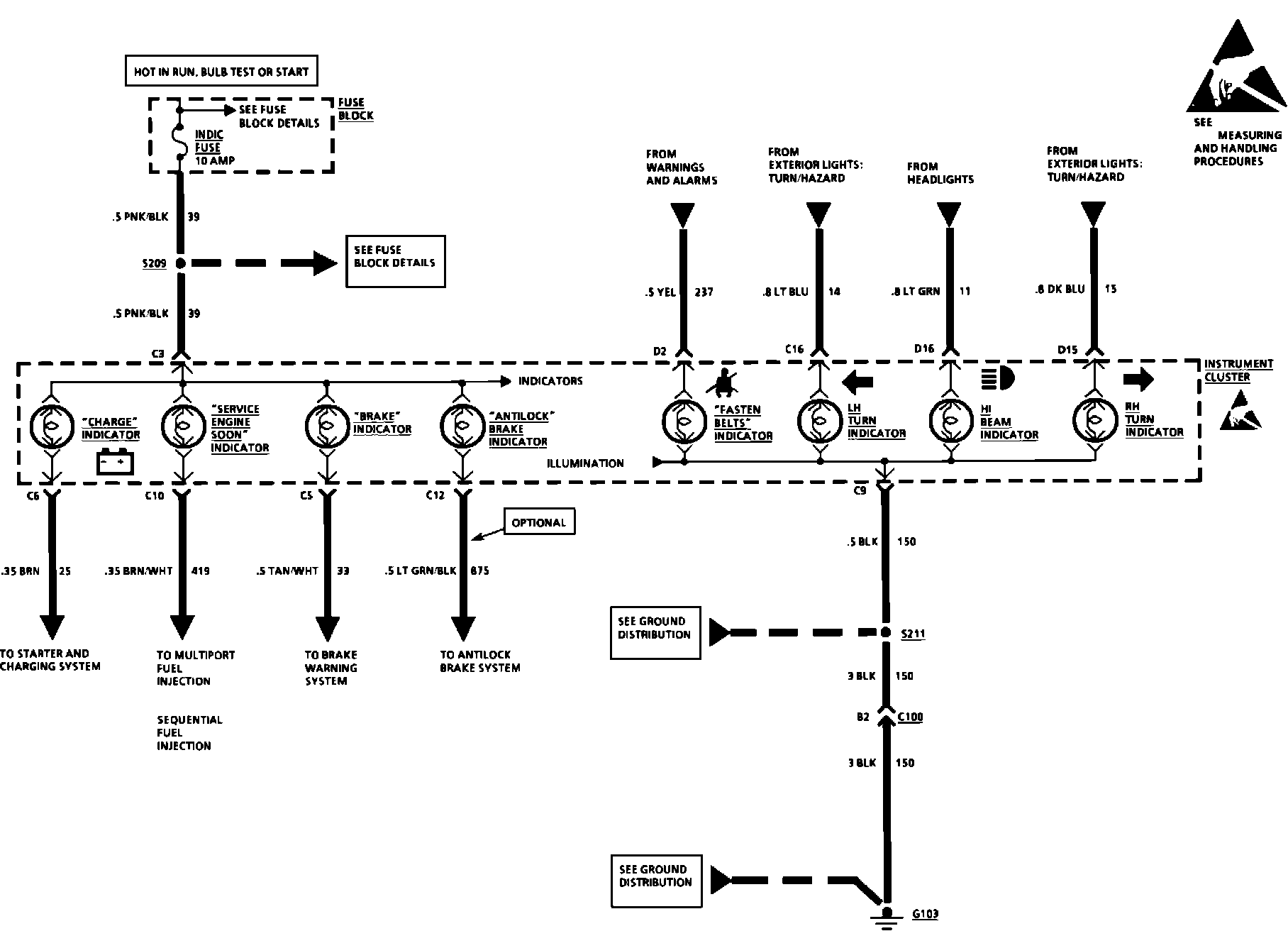

Instrument Cluster: Base:

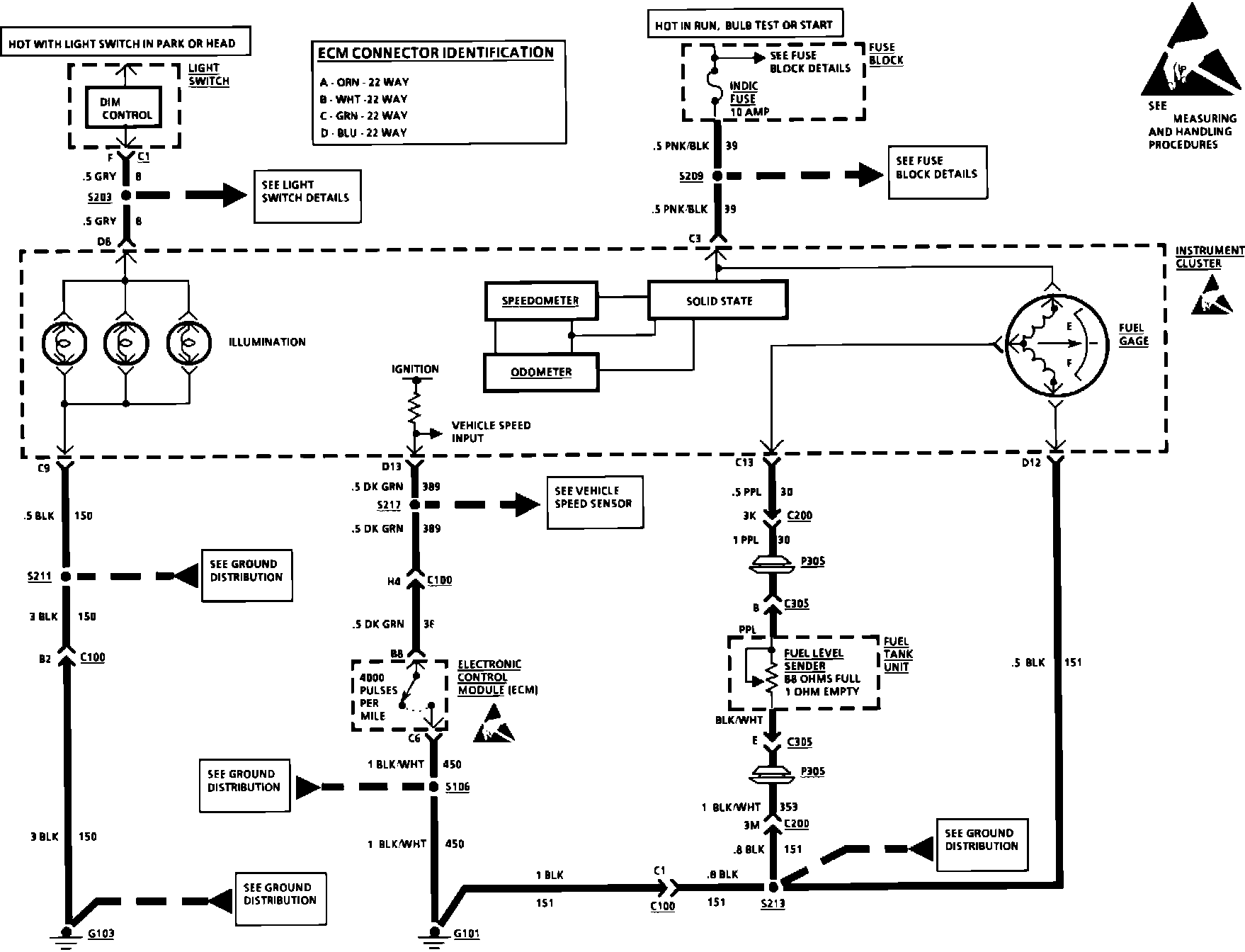

Instrument Cluster: Base:

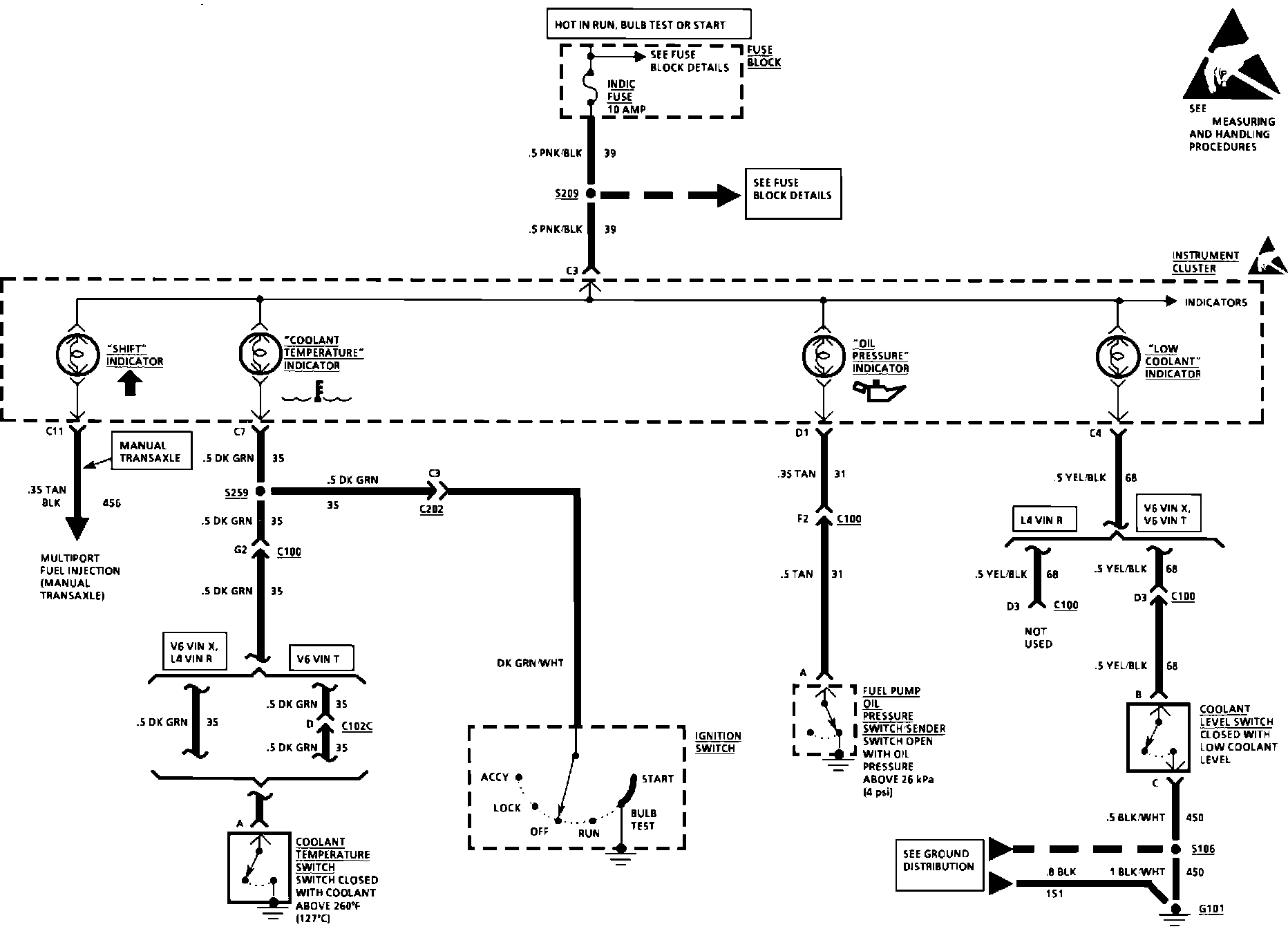

Instrument Cluster: Base:
