Electronic Leak Detectors - Description

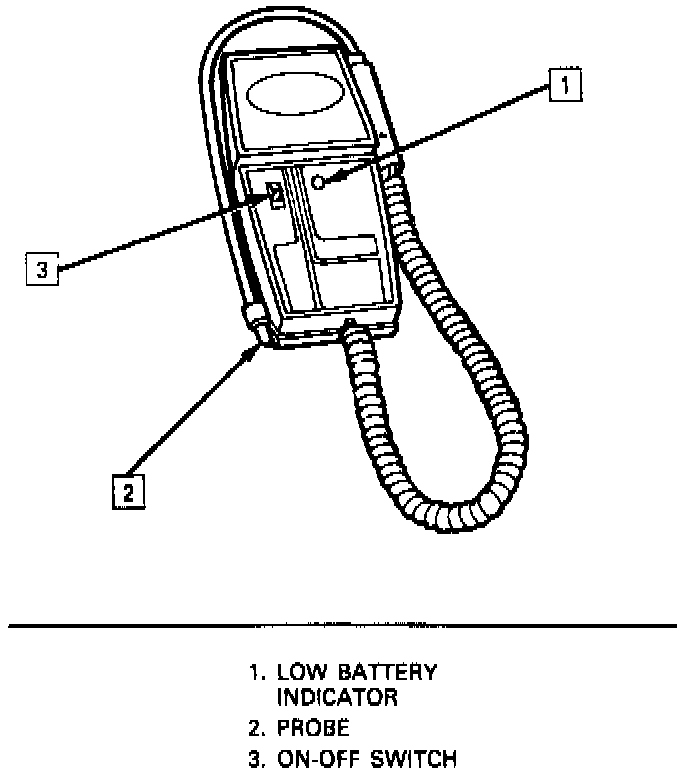

Electronic Leak Detector J 26934:

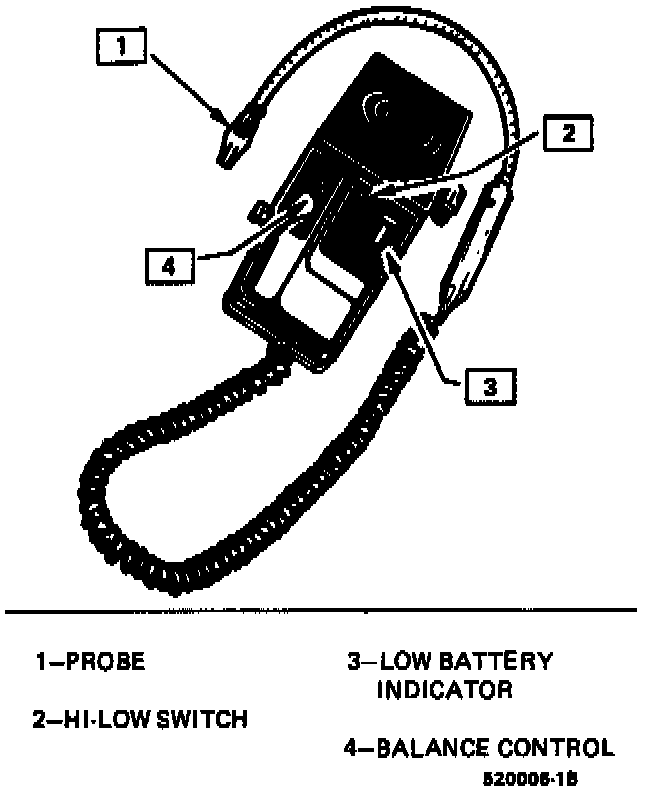

Electronic Leak Detector J 29547:

LEAK-TESTING THE REFRIGERANT SYSTEM
Test for leaks whenever a refrigerant leak is suspected and when performing a service operation which disturbs lines or connections.

Electronic Leak Detectors
Electronic leak detectors can accurately detect leaks in areas that are difficult to reach with liquid leak detector solution or in areas of poor visibility.

Leak Detectors Types
There are a number of electronic leak detectors available to perform leak tests. Current versions of the electronic leak have three settings, one for R-12, one for R-134a and one for gross. The gross setting is for isolating very large leaks already found in one of the other two settings. Refer to operating instructions for the unit being used and observe these general procedures.

The H-10 Leak Detector J 26934 is a 110-volt, A/C-powered detector. Refrigerant Leak Detector J 29547 is a portable, battery-operated model. Both models provide visual and/or audible signals to indicate a leak.

To successfully use electronic leak detectors, carefully follow the manufacturer's instructions on calibration, operation and maintenance. The condition of the battery is very important to assure accuracy with the battery-powered model J 29547. This detector has a low-battery indicator.
