Home >> Chevrolet >> 1992 >> Lumina L4-151 2.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Relays and Modules - HVAC >> Compressor Clutch Relay >> Testing and Inspection

Compressor Clutch Relay: Testing and Inspection

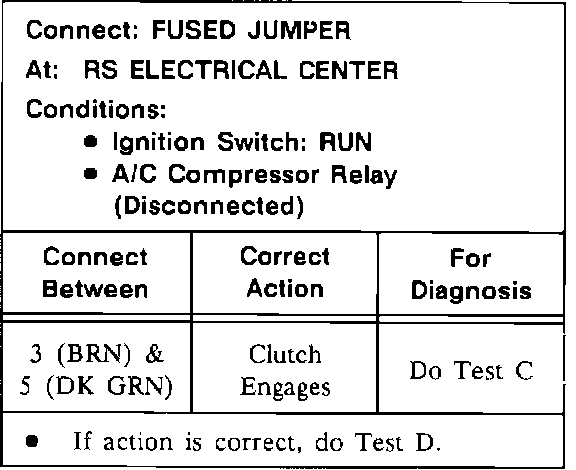

Test B: Relay Test:
